Part type:
(show)
STM0038


Specification

vo: Voltage
12
 volt
po: Power KWt
1.4
 kw
te: Number of teeth 13 pcs
ro: Rotation CR
a: Size A 54 mm
b: Drive distance 33 mm
le: Lenght 208 mm
o1: Number of mounting holes 2 pcs
o2: Number of threaded mounting holes 0 pcs

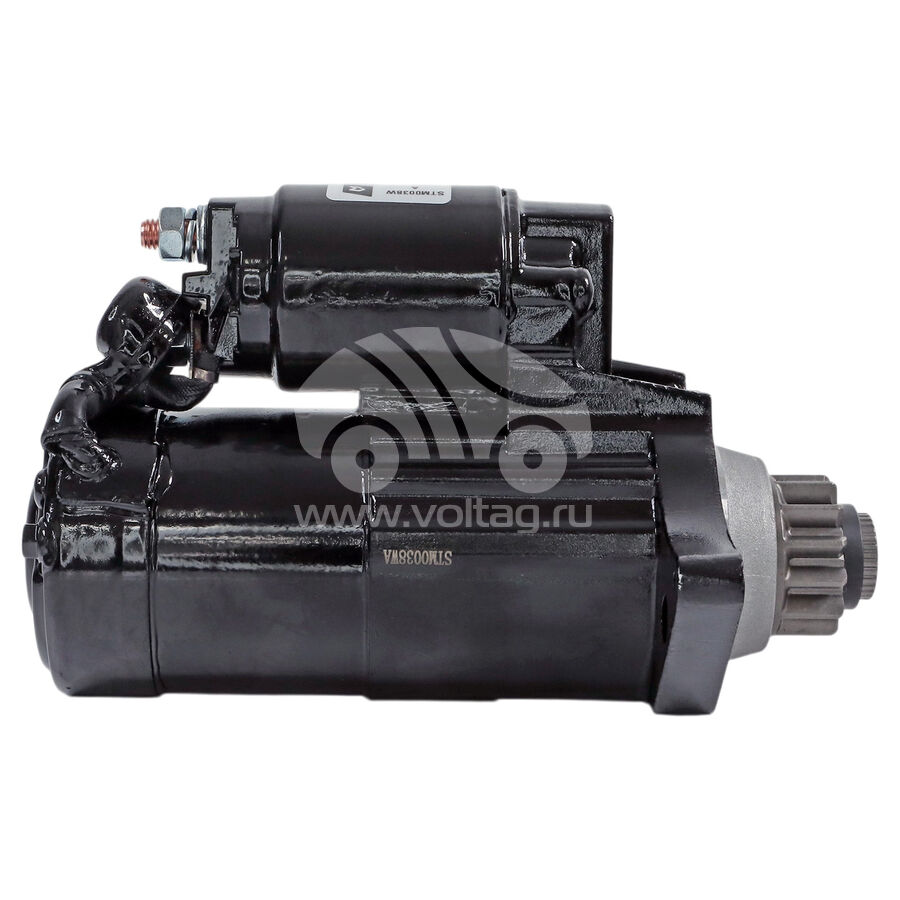

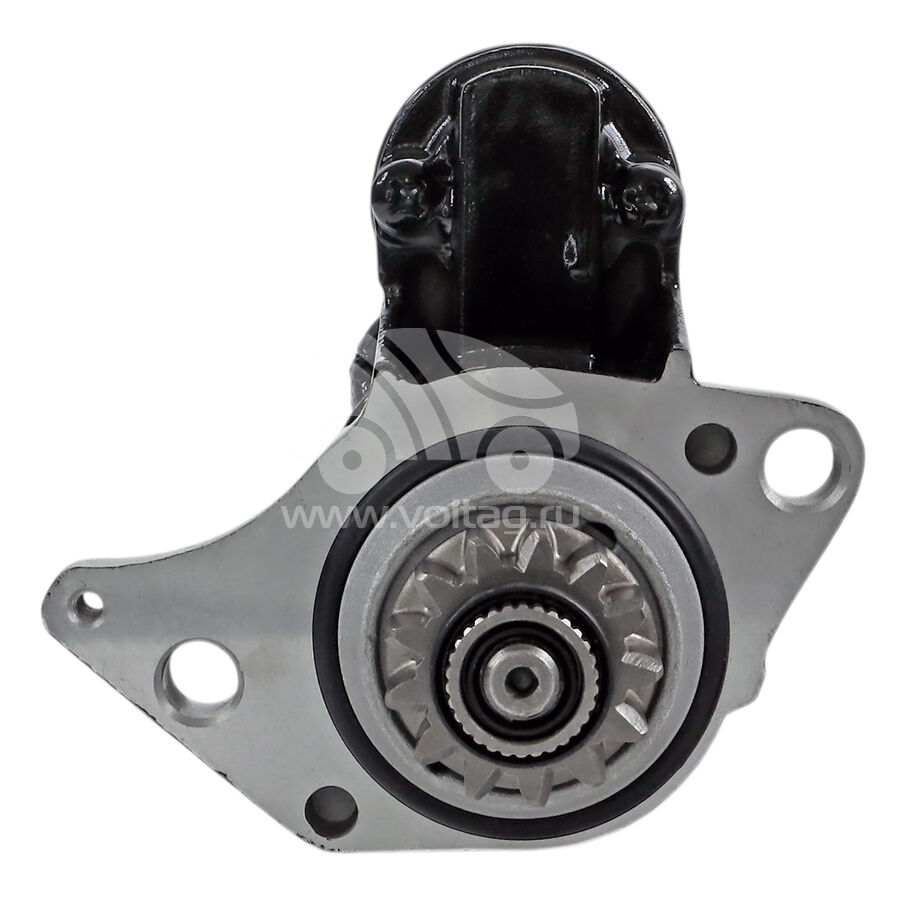

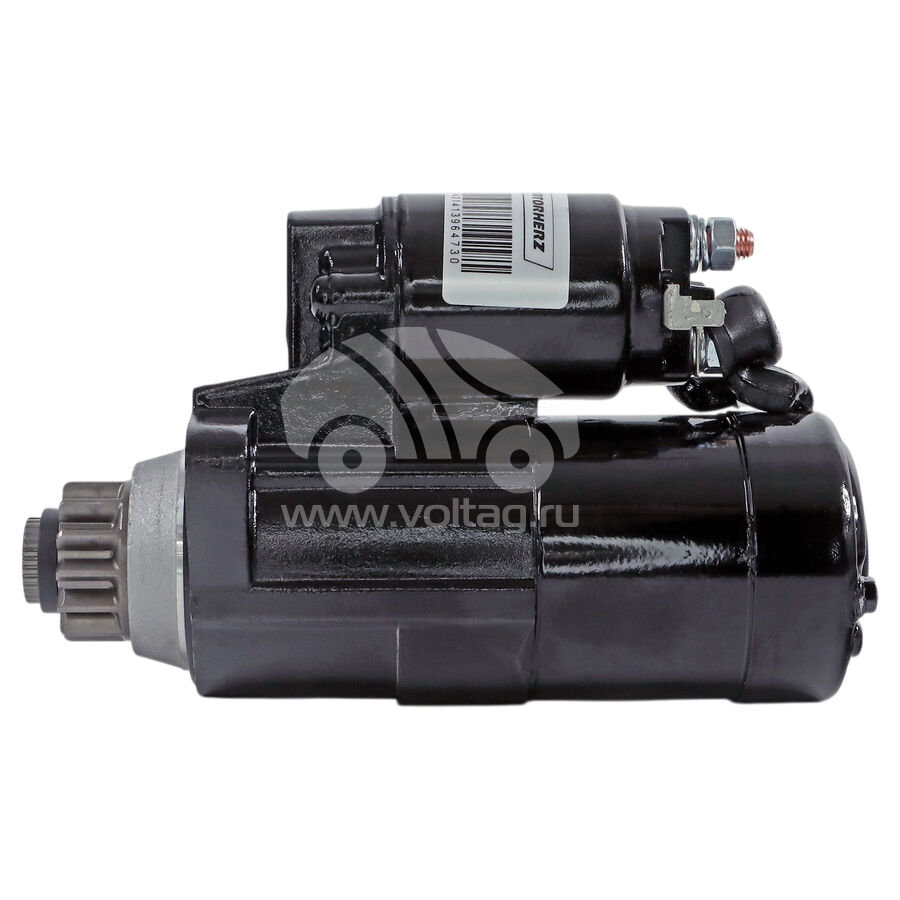

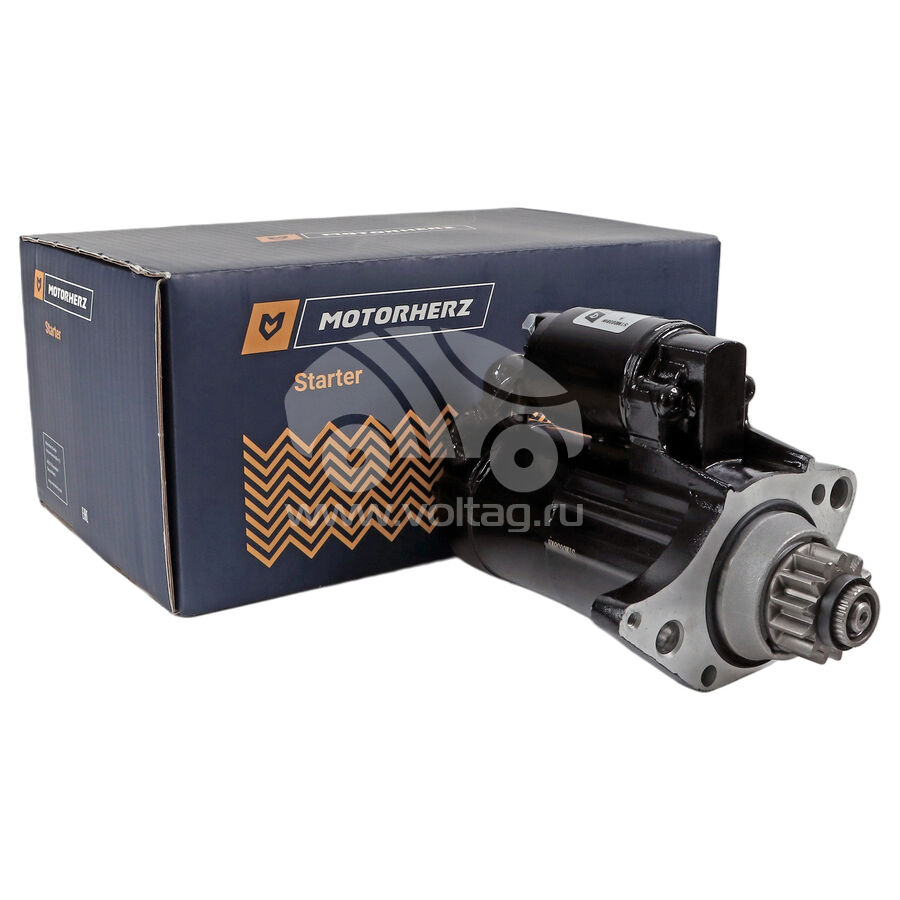

Starter STM0038
Starter STM0038
Starter STM0038

Crosses

Cargo 114855, 115525
CAS CST35171GS
Honda 312007W1A0040, 31200ZW1004, 31200ZW10040, 31200ZW1A0040, 31200ZW5003, 31200ZW50030, 31200ZW5A0032
KRAUF STM0038AB
KRAUF STM0038ABKRAUF STM0038ABKRAUF STM0038ABKRAUF STM0038ABKRAUF STM0038AB
Mitsubishi M000T65081, M0T60381, M0T65081
WAI 2-2664-MI
WPS 19603N

Application

HONDA BF115 115hp/ BF130 130hp Marine Outboards 1999-2006 HONDA MARINE OUTBOARD BF75 75 H.P. 1997-2006 HONDA MARINE OUTBOARD BF90 90 H.P. 1997-2006 HONDA MARINE OUTBOARD BF115 115 H.P. 1999-2006 HONDA MARINE OUTBOARD BF130 130 H.P. 1999-2004

Components

(all)
Honda 31200ZW5003
Alternator nut
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Brush set
Brush Holder
Pinion
Solenoid
Bushing
Starter bolt
Retainer
Lever
Starter bolt
Oil seal
Bolt
KRAUF STM0038AB
Alternator nut
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Brush set
Brush Holder
Pinion
Solenoid
Bushing
Starter bolt
Retainer
Lever
Starter bolt
Oil seal
Bolt
Mitsubishi M0T60381
Alternator nut
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Brush set
Brush Holder
Pinion
Solenoid
Bushing
Starter bolt
Retainer
Lever
Starter bolt
Oil seal
Bolt
All components
Alternator nut
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Brush set
Brush Holder
Pinion
Solenoid
Bushing
Starter bolt
Retainer
Lever
Starter bolt
Oil seal
Bolt
