Part type:
(show)
STD4330


Specification

vo: Voltage
24
 volt
po: Power KWt
8.5
 kw
te: Number of teeth 11 pcs
ro: Rotation CR
a: Size A 92 mm
b: Drive distance 47 mm
o1: Number of mounting holes 3 pcs
o2: Number of threaded mounting holes 0 pcs
od: Drive diameter ( outer ) 55 mm

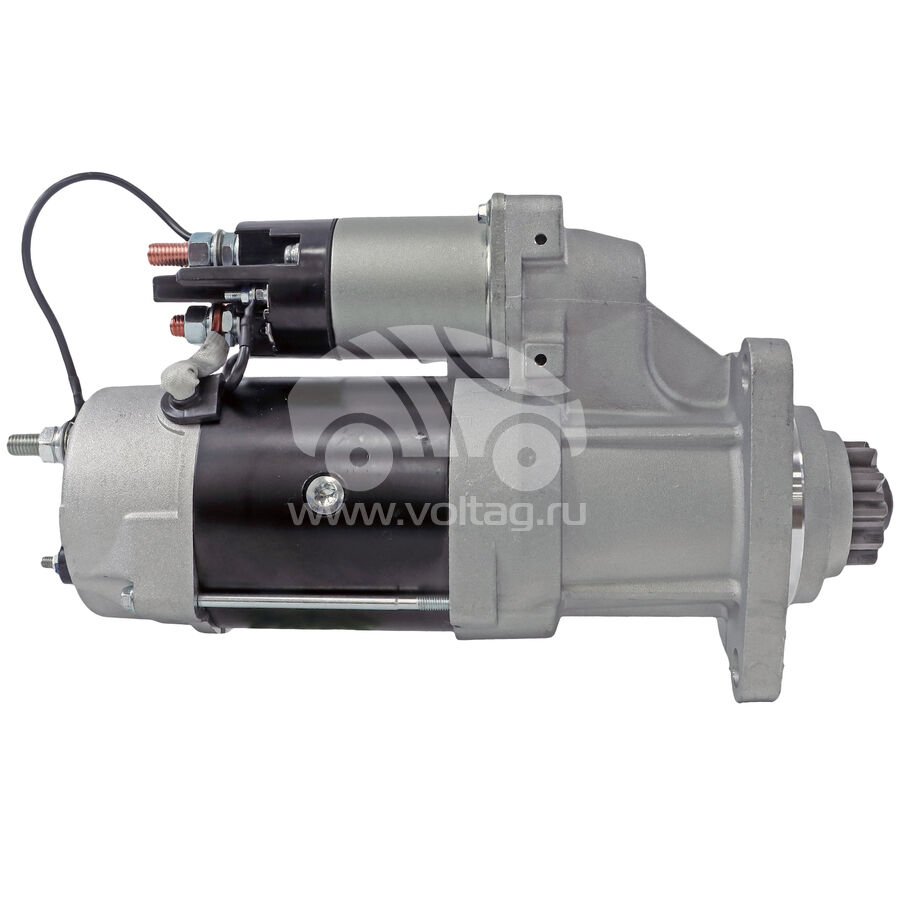

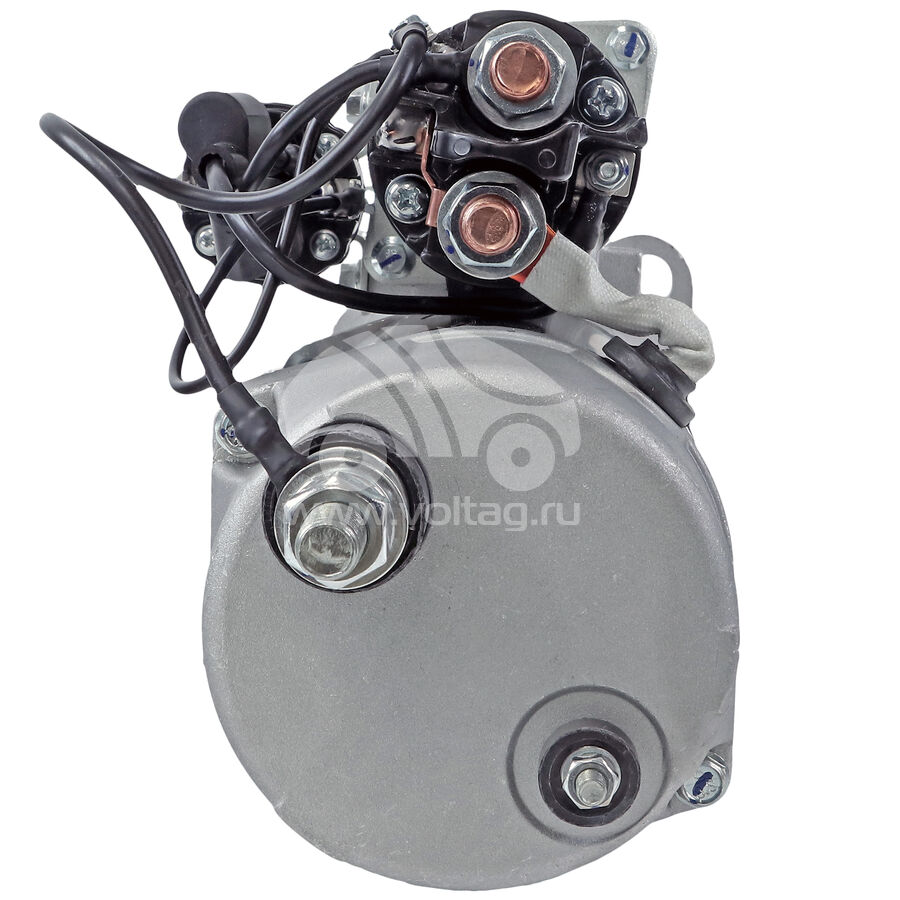

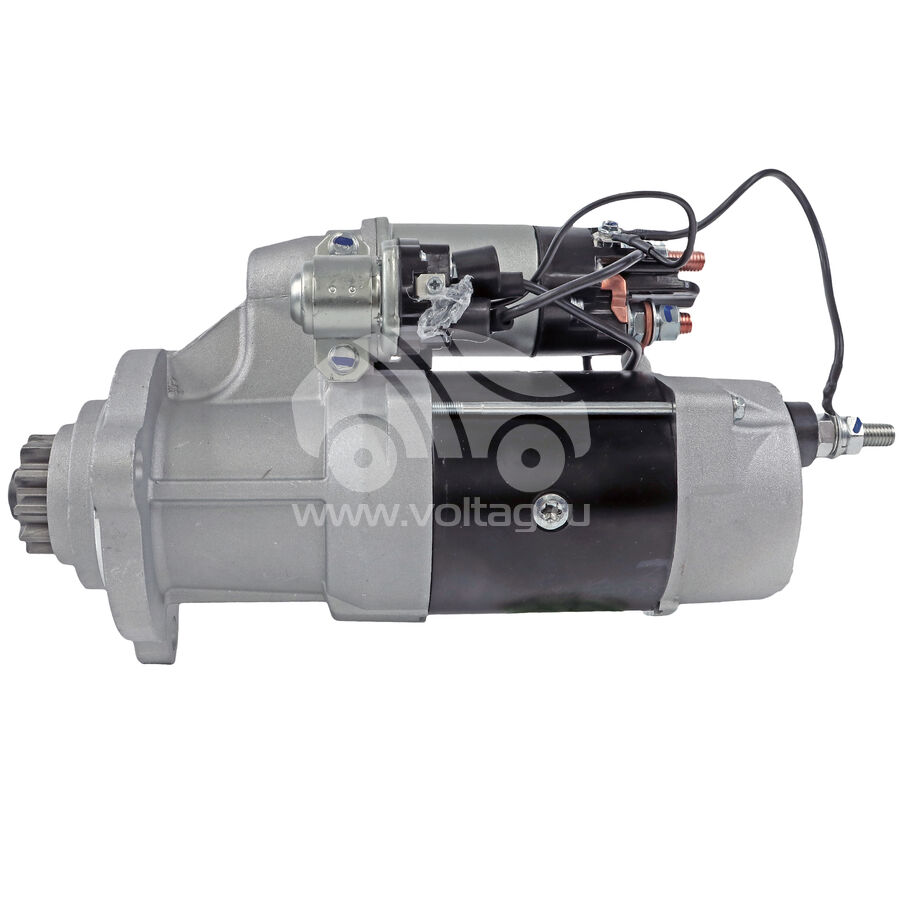

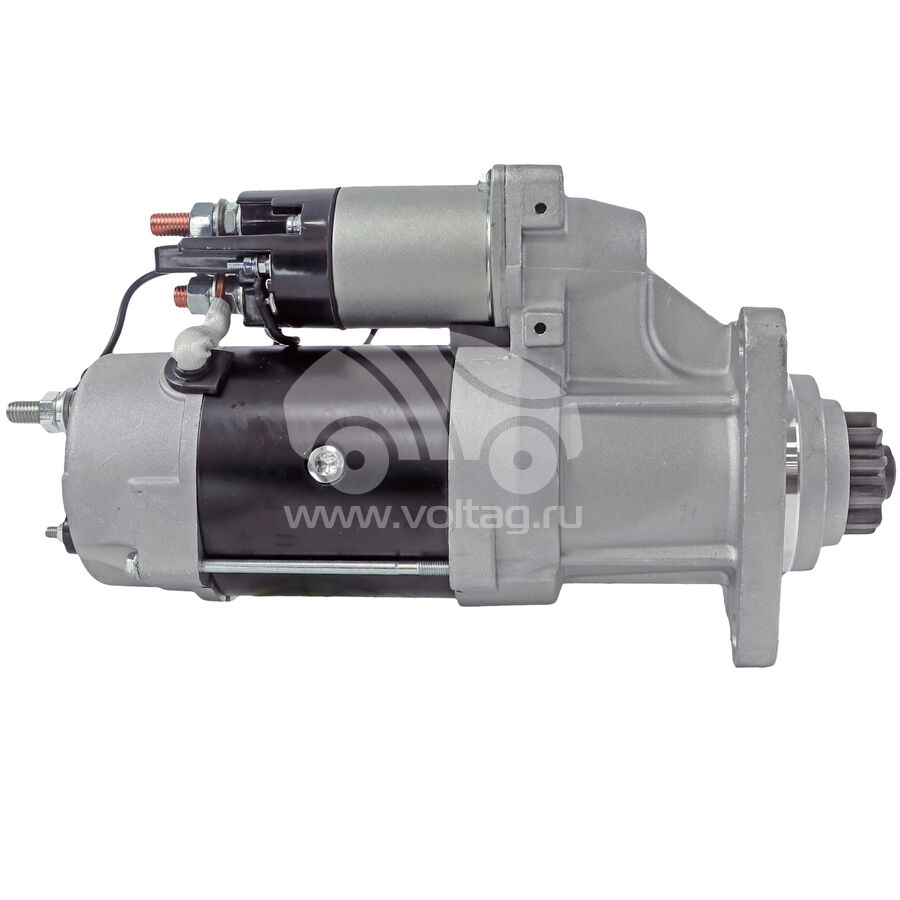

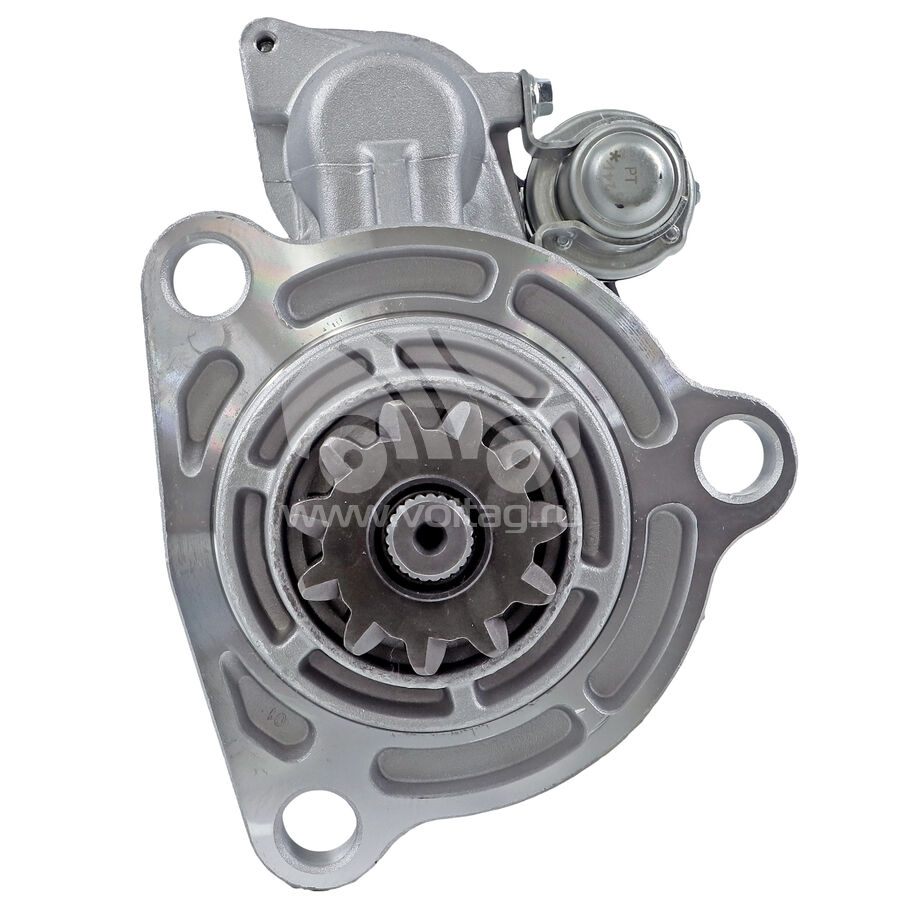

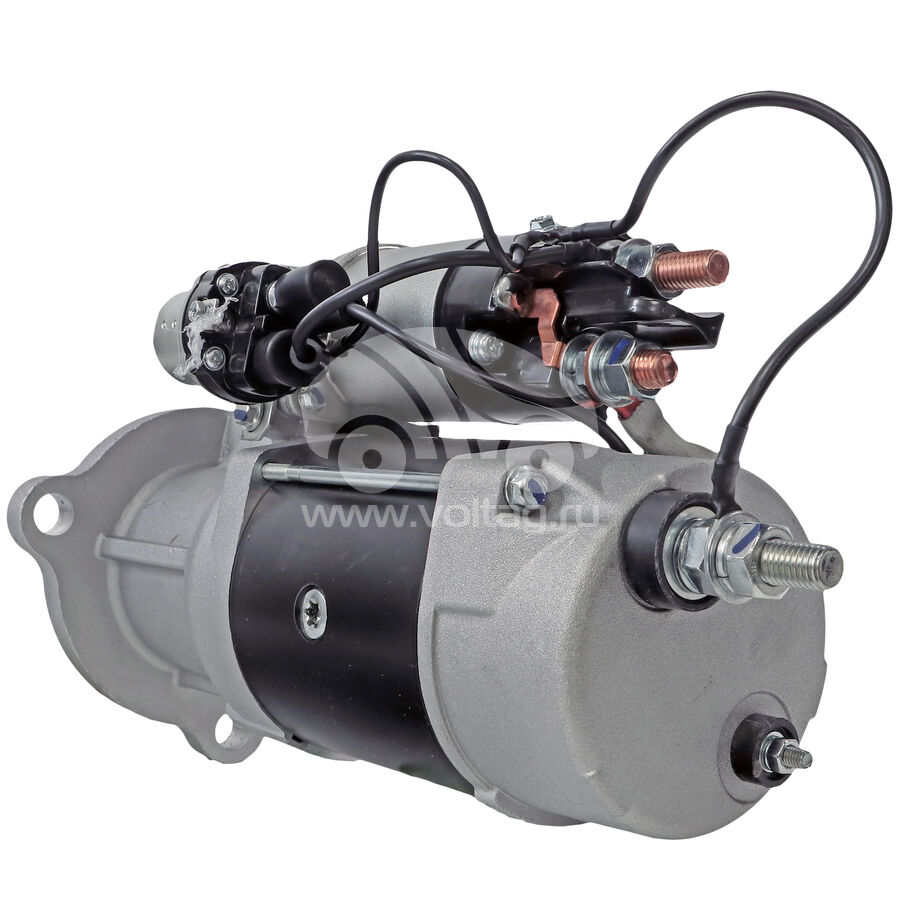

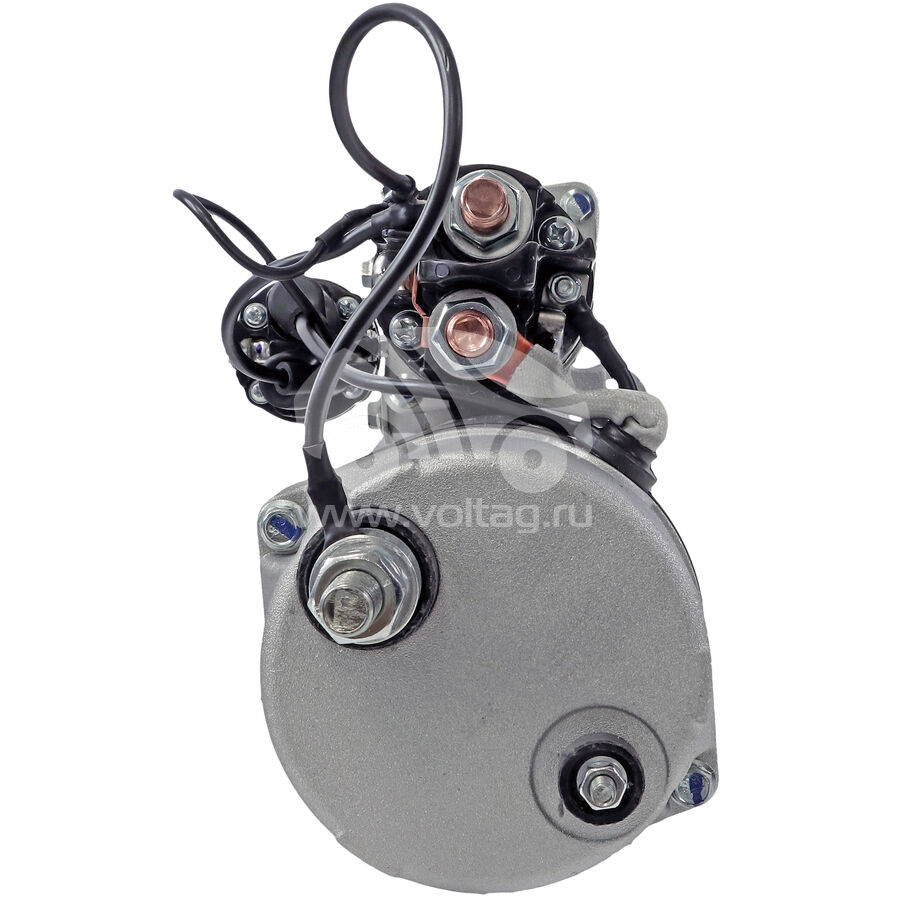

Starter STD4330
Starter STD4330
Starter STD4330
Starter STD4330
Starter STD4330
Starter STD4330

Crosses

CAT 3453406
Cummins 2871252, 2871253, 2871256, 2871257, 2899588, 3102765, 3103914, 3103916, 31791000, 4078512, 4078514, 4081235, 5284085, 5367762, 5367763, 5367773, 5367783, 5493112
Delco Remy 10461756, 10478938, 10478952, 10478988, 10478990, 10479119, 10479149, 10479168, 10479286, 19011509, 19011523, 61003202, 61015901, 8200032, 8200201, 8200321, 8200328, 8200330, 8200337, 8200430, 8200431, 8200522, 8200614, 8200700, 8200704, 8200706, 8200712, 8200725, 8200756, 8201170, 8300016, 8300018, 8300058
Hyster 1636838
INTR 87439325R, 87523673, 87607509, 87607954
KRAUF STD4330BA, STD4330EC
KRAUF STD4330ECKRAUF STD4330ECKRAUF STD4330ECKRAUF STD4330ECKRAUF STD4330EC
, STD4330MH
KRAUF STD4330MHKRAUF STD4330MHKRAUF STD4330MHKRAUF STD4330MHKRAUF STD4330MH
, STD4330NB
KRAUF STD4330NBKRAUF STD4330NBKRAUF STD4330NBKRAUF STD4330NBKRAUF STD4330NB
, STD4330NL
KRAUF STD4330NLKRAUF STD4330NLKRAUF STD4330NLKRAUF STD4330NLKRAUF STD4330NL
, STD4330TJ, STD4330UL, STD4330XY, STD4330ZL, STD6330BA, STD6330MH
KRAUF STD6330MHKRAUF STD6330MHKRAUF STD6330MHKRAUF STD6330MHKRAUF STD6330MH
, STD6330NL
KRAUF STD6330NLKRAUF STD6330NLKRAUF STD6330NLKRAUF STD6330NLKRAUF STD6330NL
, STD6330SK
KRAUF STD6330SKKRAUF STD6330SKKRAUF STD6330SKKRAUF STD6330SKKRAUF STD6330SK
, STD6330WD
KRAUF STD6330WDKRAUF STD6330WDKRAUF STD6330WDKRAUF STD6330WDKRAUF STD6330WD
, STD6330ZL, STD9330NB
KRAUF STD9330NBKRAUF STD9330NBKRAUF STD9330NBKRAUF STD9330NBKRAUF STD9330NB
, STD9330SK
KRAUF STD9330SK
, STD9330UW
KRAUF STD9330UWKRAUF STD9330UWKRAUF STD9330UWKRAUF STD9330UWKRAUF STD9330UW
, STM4330NB
KRAUF STM4330NBKRAUF STM4330NBKRAUF STM4330NBKRAUF STM4330NBKRAUF STM4330NB
, STM4330UW
KRAUF STM4330UWKRAUF STM4330UWKRAUF STM4330UWKRAUF STM4330UWKRAUF STM4330UW
, STP4330MH
KRAUF STP4330MHKRAUF STP4330MHKRAUF STP4330MHKRAUF STP4330MHKRAUF STP4330MH
Mitsubishi M9T83579
Motorherz STD4330RB, STD4330WA
Motorherz STD4330WAMotorherz STD4330WAMotorherz STD4330WAMotorherz STD4330WAMotorherz STD4330WA
, STD6330WA
Motorherz STD6330WAMotorherz STD6330WAMotorherz STD6330WAMotorherz STD6330WAMotorherz STD6330WA
, STD9330WA
Motorherz STD9330WAMotorherz STD9330WAMotorherz STD9330WAMotorherz STD9330WAMotorherz STD9330WA
, STM4330WA
Motorherz STM4330WAMotorherz STM4330WAMotorherz STM4330WAMotorherz STM4330WAMotorherz STM4330WA
Nikko 0610000370
Prestolite M105R3508SE
Unipoint STR4390
WAI 2-2348-DR-1, 6852R
WPS 22348DR, 6837N, 6853N
ZAUFER 300N10101Z

Application

CAT Engine [C12] CAT Engine [C13] CAT Engine [C15] CUMMINS Engine [ISM] CUMMINS Engine [ISX] CUMMINS Engine [N14] DETROIT Engine [S50] DETROIT Engine [S60] MACK Engine [E7] Freightliner Sterling Western Star Cummins NT855, ISM34530 Caterpillar 3306 Caterpillar (1993-2003) , Champion (1995-1998) , Prevost (1998-2008) , Samsung (1992-1998) , Western Star (1989-1997) 39MT

Components

(all)
Core 19011523
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Armature
Yoke, Field case
Outer Gear
Planet gear
Planet gear
Pinion
Solenoid
Solenoid
Terminal
Delco Remy 10461756
Yoke, Field case
Solenoid
Delco Remy 19011509
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Armature
Yoke, Field case
Yoke, Field case
Planet gear
Pinion
Solenoid
Solenoid
Terminal
Delco Remy 19011523
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Armature
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Planet gear
Brush Holder
Pinion
Solenoid
Solenoid
Terminal
Delco Remy 8200032
Solenoid
Delco Remy 8200330
Field coil
Delco Remy 8300018
Solenoid
KRAUF STD4330EC
Starter Bearing
Armature
Yoke, Field case
Outer Gear
Planet gear
Solenoid
Solenoid
KRAUF STD4330MH
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Brush Holder
Brush set
Brush set
Pinion
Solenoid
Solenoid
Solenoid
Starter bolt
Lever
KRAUF STD4330NB
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Brush Holder
Brush set
Brush set
Pinion
Solenoid
Solenoid
Solenoid
Starter bolt
Lever
KRAUF STD4330NL
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Brush Holder
Brush set
Brush set
Pinion
Solenoid
Solenoid
Solenoid
Starter bolt
Lever
KRAUF STD6330MH
Armature
C.E. Bracket
D.E. Brackets
Drive
Field coil
Pinion
Solenoid
Solenoid
KRAUF STD6330NL
Alternator nut
Alternator nut
Alternator nut
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Gear wheel
Outer Gear
Brush Holder
Brush set
Pinion
Solenoid
Solenoid
Starter bolt
Terminal
Lever
KRAUF STD6330SK
Starter/Alternator Bearing
Starter Bearing
Armature
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Pinion
Solenoid
Solenoid
KRAUF STD6330WD
Alternator nut
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Gear wheel
Outer Gear
Brush Holder
Brush set
Pinion
Solenoid
Solenoid
Starter bolt
Lever
Starter bolt
KRAUF STD9330NB
Alternator nut
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
D.E. Brackets
C.E. Bracket
Drive
Field coil
Gear wheel
Outer Gear
Brush Holder
Brush set
Repair kit
Pinion
Solenoid
Starter bolt
Starter bolt
Lever
KRAUF STD9330UW
Alternator nut
Alternator nut
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Brush Holder
Brush set
Repair kit
Pinion
Solenoid
Solenoid
Starter Screw-nut
Bolt
Starter bolt
Lever
Starter bolt
KRAUF STM4330NB
Alternator nut
Alternator nut
Needle Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Gear wheel
Planet gear
Outer Gear
Brush set
Brush Holder
Pinion
Solenoid
Solenoid
Lever
Starter bolt
KRAUF STM4330UW
Alternator nut
Alternator nut
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
D.E. Brackets
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Brush Holder
Brush set
Pinion
Solenoid
Solenoid
Starter bolt
Starter bolt
Lever
Starter bolt
KRAUF STP4330MH
Alternator nut
Alternator nut
Needle Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Gear wheel
Planet gear
Brush set
Pinion
Solenoid
Solenoid
Starter bolt
Lever
Mitsubishi M9T83579
Gear wheel
Planet gear
Motorherz STD4330RB
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Armature
Yoke, Field case
Outer Gear
Planet gear
Planet gear
Pinion
Solenoid
Solenoid
Terminal
Motorherz STD4330WA
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Armature
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Planet gear
Brush Holder
Pinion
Solenoid
Solenoid
Terminal
Motorherz STD6330WA
Armature
C.E. Bracket
D.E. Brackets
Drive
Field coil
Pinion
Solenoid
Solenoid
Motorherz STD9330WA
Starter/Alternator Bearing
Starter Bearing
Starter Bearing
Armature
Drive
Yoke, Field case
Gear wheel
Outer Gear
Planet gear
Planet gear
Brush Holder
Pinion
Solenoid
Solenoid
Terminal
All components
Alternator nut
Alternator nut
Alternator nut
Starter/Alternator Bearing
Needle Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Starter Bearing
Armature
Armature
C.E. Bracket
C.E. Bracket
D.E. Brackets
D.E. Brackets
C.E. Bracket
C.E. Bracket
Drive
Drive
Drive
Drive
Yoke, Field case
Field coil
Yoke, Field case
Planet gear
Gear wheel
Outer Gear
Planet gear
Planet gear
Gear wheel
Planet gear
Outer Gear
Brush Holder
Brush Holder
Brush Holder
Brush set
Brush set
Brush set
Brush Holder
Repair kit
Pinion
Pinion
Pinion
Pinion
Pinion
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Solenoid
Starter bolt
Starter bolt
Starter Screw-nut
Bolt
Starter bolt
Terminal
Starter bolt
Starter bolt
Lever
Starter bolt
Lever
Lever
Starter bolt
