Part type:
(show)
STB4822


Specification

vo: Voltage
12
 volt
po: Power KWt
2.3
 kw
te: Number of teeth 9 pcs
ro: Rotation CR
a: Size A 110 mm
b: Drive distance 27 mm
le: Lenght 272 mm
o1: Number of mounting holes 3 pcs
o2: Number of threaded mounting holes 0 pcs
od: Drive diameter ( outer ) 35 mm

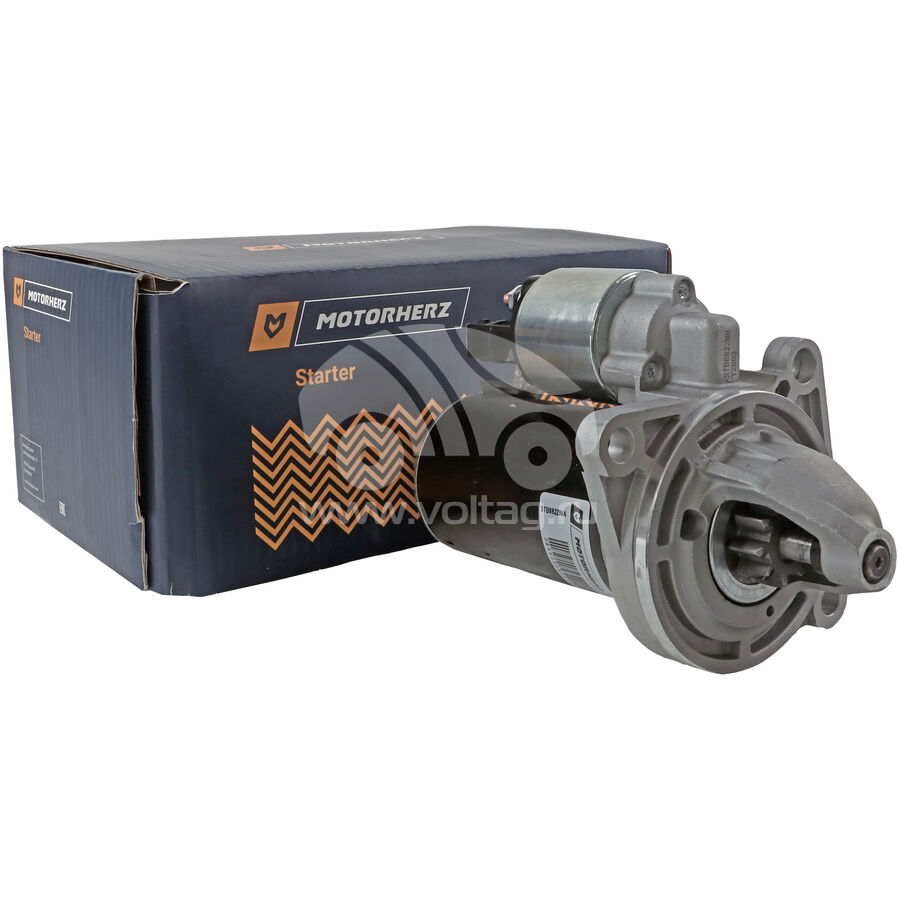

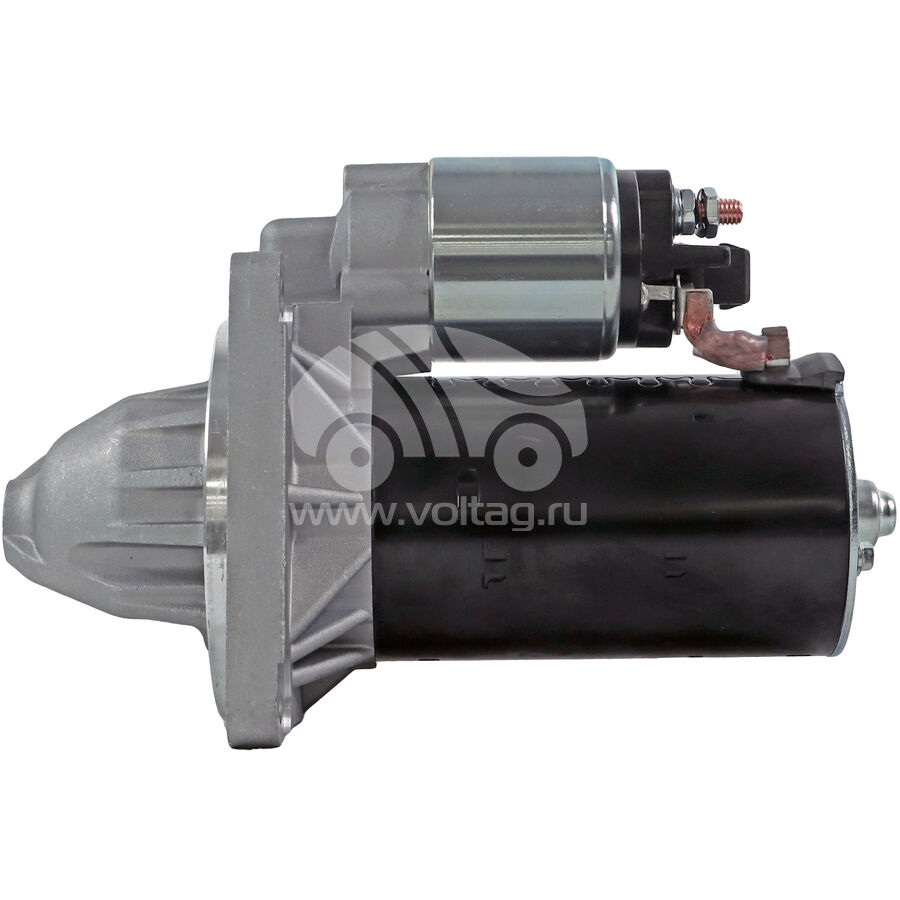

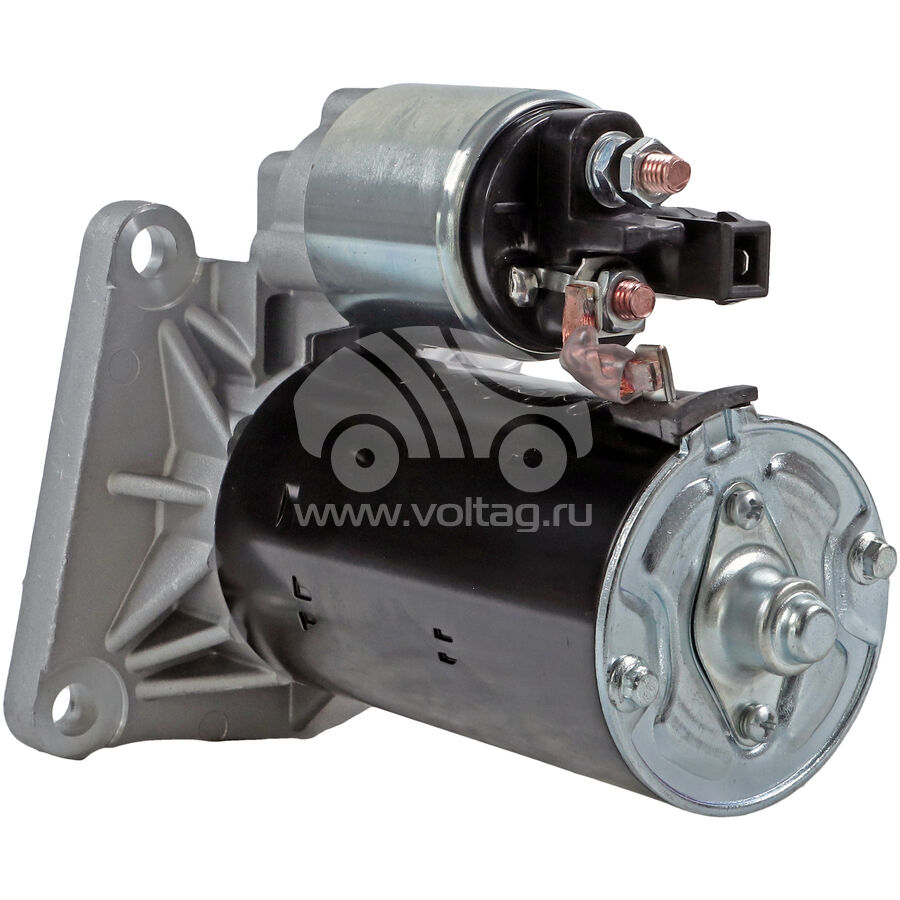

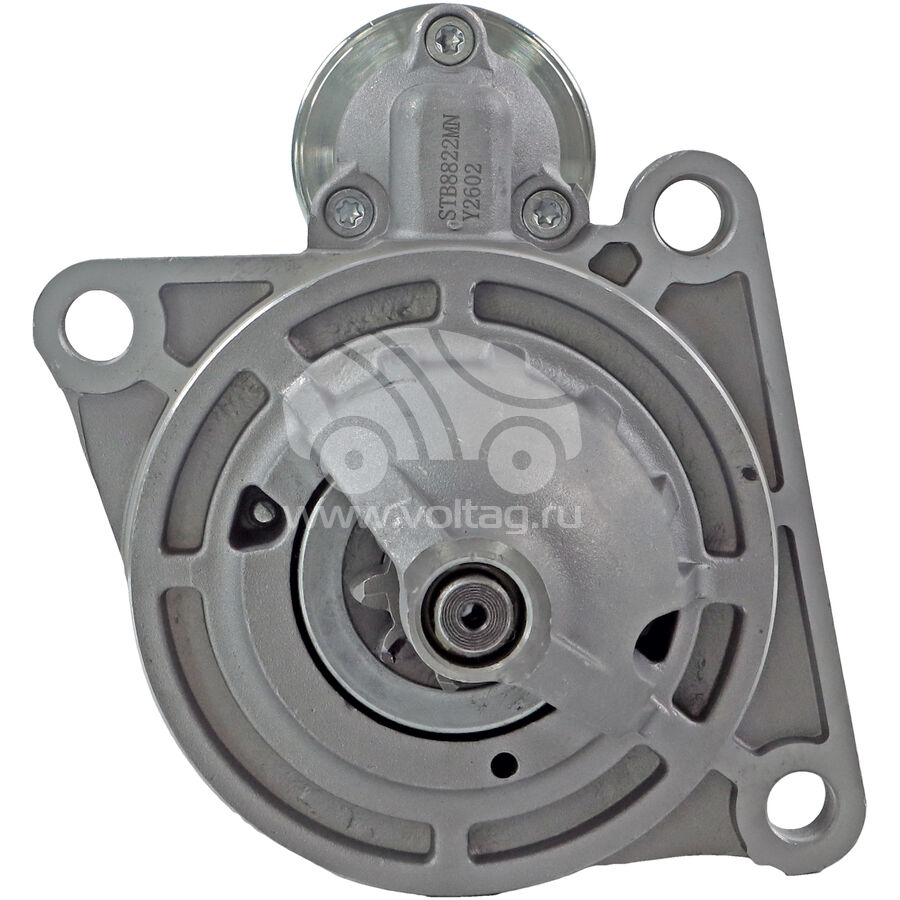

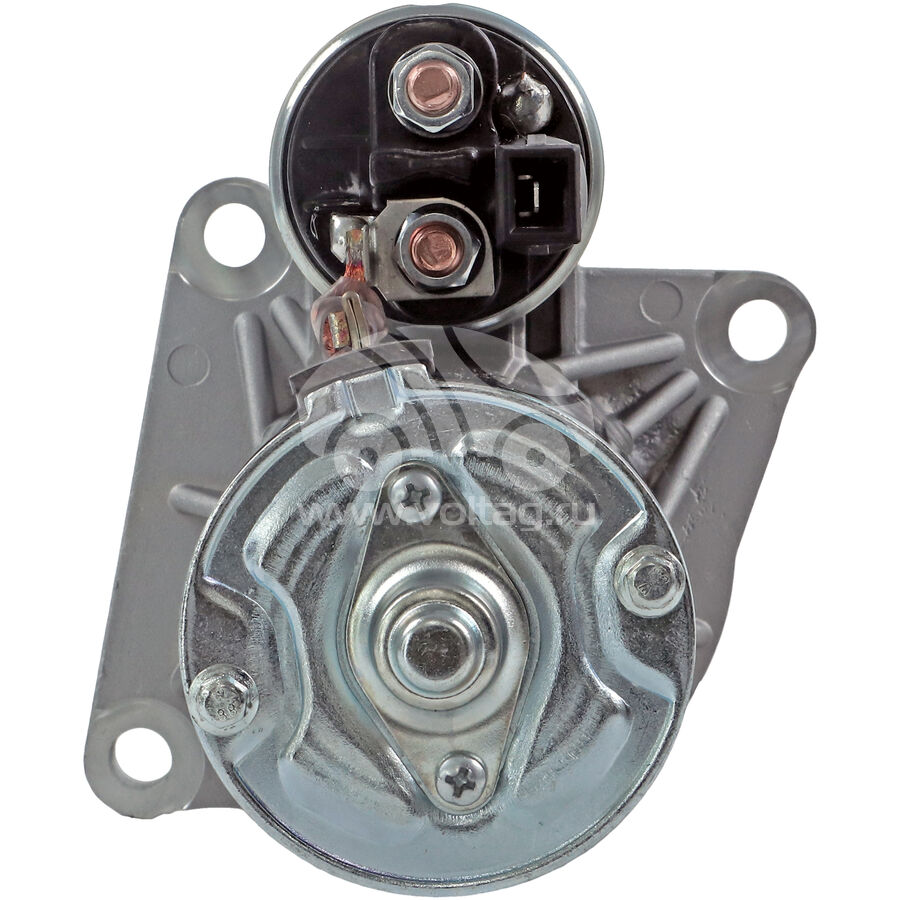

Starter STB4822
Starter STB4822
Starter STB4822

Crosses

AS S0588
Bosch 0001109417, 0001218820, 0001218822, 0001223010, 0986023860, 6033AB1J00
Cargo 114304
CAS CST10380AS
Ford 2C3511001AA, XC3U11000BA
KRAUF STB4822MN
KRAUF STB4822MNKRAUF STB4822MNKRAUF STB4822MNKRAUF STB4822MNKRAUF STB4822MN
, STB8822BA, STB8822MN
KRAUF STB8822MNKRAUF STB8822MNKRAUF STB8822MNKRAUF STB8822MNKRAUF STB8822MN
, STB9822LC, STB9822MN
KRAUF STB9822MNKRAUF STB9822MNKRAUF STB9822MNKRAUF STB9822MNKRAUF STB9822MN
, STB9822TJ, STB9822UL
KRAUF STB9822ULKRAUF STB9822ULKRAUF STB9822ULKRAUF STB9822ULKRAUF STB9822UL
, STB9822YN
KRAUF STB9822YNKRAUF STB9822YNKRAUF STB9822YNKRAUF STB9822YNKRAUF STB9822YN
Lucas LRS01710, LRS1710
Motorherz STB4822WA, STB8822WA
Motorherz STB8822WAMotorherz STB8822WAMotorherz STB8822WAMotorherz STB8822WAMotorherz STB8822WA
, STB9822RB
VAG 00010EA6EE, 062911023, 062911023X
VW 062911023V
WAI 32710R
ZAUFER 300N10681Z

Application

VW LT 28-35 2.8 TDi [AGK] 02.1997-12.1998 VW LT 28-35 2.8 TDi [AGK] 06.1997-12.1998 VW LT 28-35 2.8 TDi [ATA] 01.1999- VW LT 28-35 2.8 TDi [AUH] 04.2002- VW LT 28-35 2.8 TDi [BCQ] 05.2001-06.2006 VW LT 40-55 2.8 TDi [AGK] 06.1997-12.1998 VW LT 40-55 2.8 TDi [ATA] 01.1999- VW LT 40-55 2.8 TDi [AUH] 04.2002- FORD AUSTRALIA F250 4.2 TD 2001 - 2003 FORD AUSTRALIA F250 4.2 TD 2003 - 2006 FORD USA F-250 4.2 2003 - 2006 FORD USA F-250 4.2 D 1999 - 2003 FORD USA F-250 4.2 D 2003 - 2006 FORD USA F-250 4.2 D 4x4 1999 - 2003 FORD USA F-250 4.2 D 4x4 2003 - 2006

Components

(all)
Bosch 0001109417
Needle Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush Holder
Bushing
Bushing
Lever
Cover
Starter bolt
Bosch 0001218820
Needle Bearing
Armature
Drive
Outer Gear
Planet gear
Brush Holder
Solenoid
Solenoid
Bushing
Bushing
Oil seal
Starter bolt
Lever
Bosch 0001218822
Needle Bearing
Armature
Armature
C.E. Bracket
D.E. Brackets
Drive
Planet gear
Outer Gear
Brush Holder
Brush set
Solenoid
Bushing
Bushing
Motor starter
Oil seal
Starter bolt
Lever
Bosch 0001223010
Starter Bearing
Armature
C.E. Bracket
Drive
Drive
Yoke, Field case
Planet gear
Brush Holder
Solenoid
Bushing
Bushing
Starter bolt
Starter bolt
Lever
Bosch 6033AB1J00
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Field coil
Field coil
Planet gear
Planet gear
Planet gear
Outer Gear
Brush set
Brush Holder
Solenoid
Bushing
Bushing
Starter bolt
Spring
Lever
Bolt
Cover
Alternator bolt
Core 0001218822
Needle Bearing
Armature
Drive
Outer Gear
Solenoid
Bushing
Bushing
Oil seal
Starter bolt
Lever
HC-PARTS 0001218822
Needle Bearing
Armature
Drive
Outer Gear
Solenoid
Bushing
Bushing
Oil seal
Starter bolt
Lever
KRAUF STB4822MN
Needle Bearing
Armature
Armature
C.E. Bracket
D.E. Brackets
Drive
Planet gear
Outer Gear
Brush Holder
Brush set
Solenoid
Bushing
Bushing
Motor starter
Oil seal
Starter bolt
Lever
KRAUF STB8822MN
Needle Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush Holder
Solenoid
Bushing
Bushing
Lever
Cover
Starter bolt
KRAUF STB9822MN
Starter Bearing
Armature
C.E. Bracket
Drive
Drive
Yoke, Field case
Planet gear
Brush Holder
Solenoid
Bushing
Bushing
Starter bolt
Starter bolt
Lever
KRAUF STB9822UL
Starter Bearing
Armature
C.E. Bracket
Drive
Drive
Yoke, Field case
Planet gear
Brush Holder
Solenoid
Bushing
Bushing
Starter bolt
Starter bolt
Lever
KRAUF STB9822YN
Starter Bearing
Armature
C.E. Bracket
Drive
Drive
Yoke, Field case
Planet gear
Brush Holder
Solenoid
Bushing
Bushing
Starter bolt
Starter bolt
Lever
Motorherz STB4822WA
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Planet gear
Outer Gear
Brush set
Solenoid
Bushing
Bushing
Motor starter
Oil seal
Starter bolt
Lever
Motorherz STB8822WA
Needle Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush Holder
Solenoid
Bushing
Bushing
Lever
Cover
Starter bolt
VAG 062911023X
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Planet gear
Outer Gear
Brush set
Solenoid
Bushing
Bushing
Motor starter
Oil seal
Starter bolt
Lever
All components
Needle Bearing
Starter Bearing
Armature
Armature
Armature
Armature
C.E. Bracket
C.E. Bracket
D.E. Brackets
C.E. Bracket
Drive
Drive
Drive
Drive
Drive
Field coil
Yoke, Field case
Yoke, Field case
Field coil
Planet gear
Planet gear
Planet gear
Planet gear
Planet gear
Outer Gear
Planet gear
Planet gear
Brush set
Brush Holder
Brush set
Brush Holder
Brush Holder
Solenoid
Solenoid
Solenoid
Bushing
Bushing
Bushing
Bushing
Bushing
Starter bolt
Motor starter
Oil seal
Lever
Starter bolt
Spring
Lever
Bolt
Cover
Cover
Starter bolt
Alternator bolt
