Part type:
(show)
STB3181


Specification

vo: Voltage
12
 volt
po: Power KWt
2.3
 kw
te: Number of teeth 9 pcs
ro: Rotation CR
a: Size A 82 mm
b: Drive distance 23 mm
le: Lenght 261 mm
o1: Number of mounting holes 2 pcs
o2: Number of threaded mounting holes 0 pcs
od: Drive diameter ( outer ) 34 mm

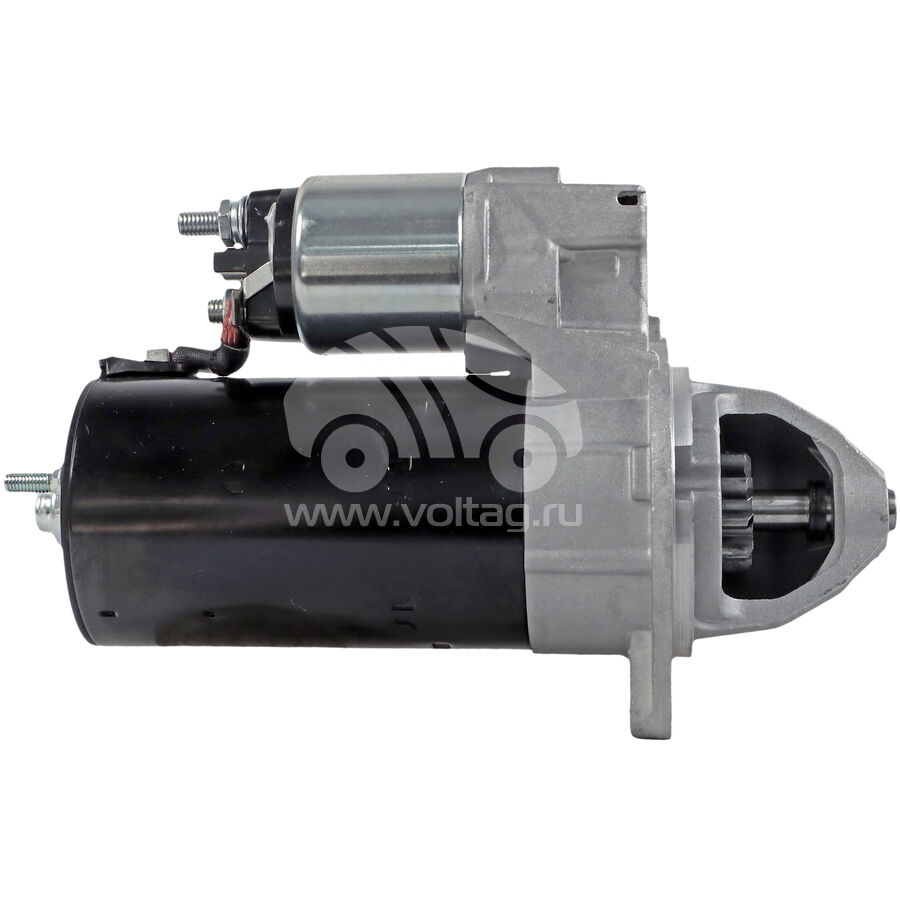

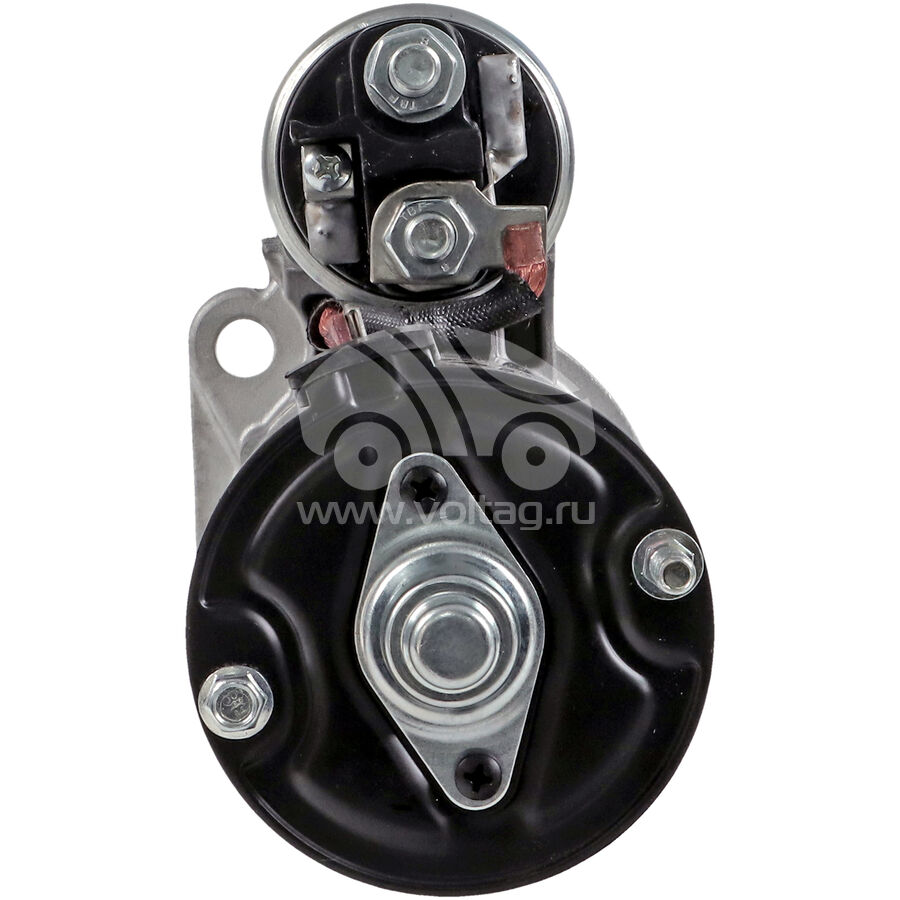

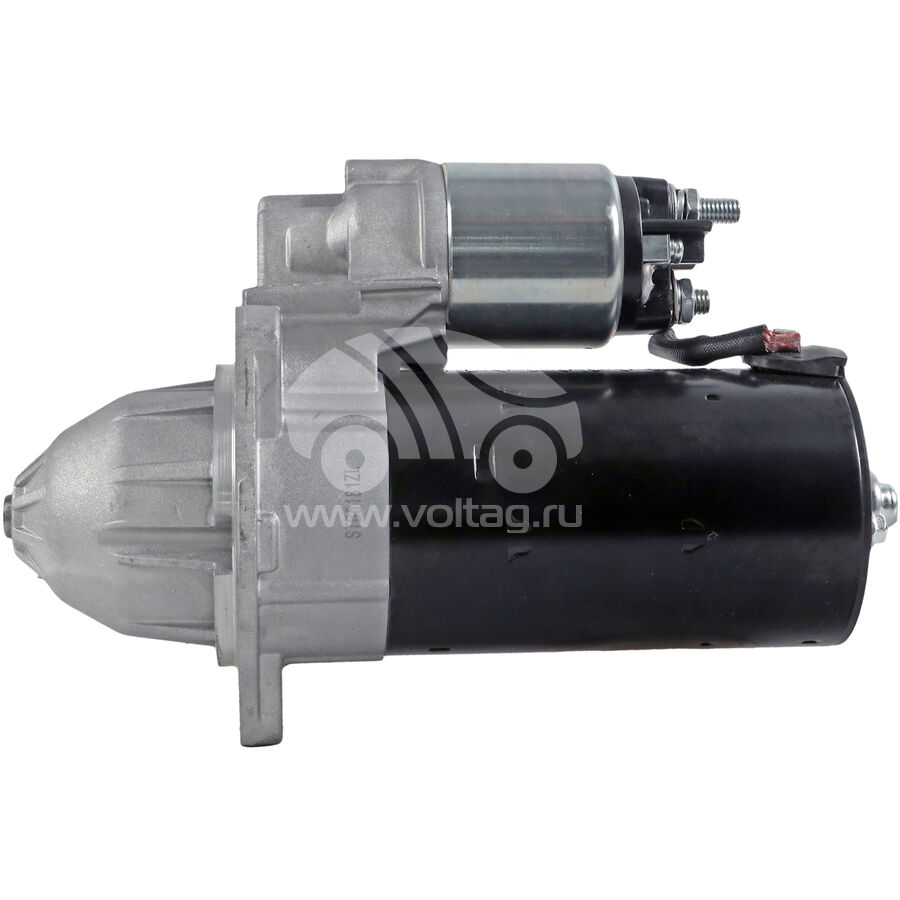

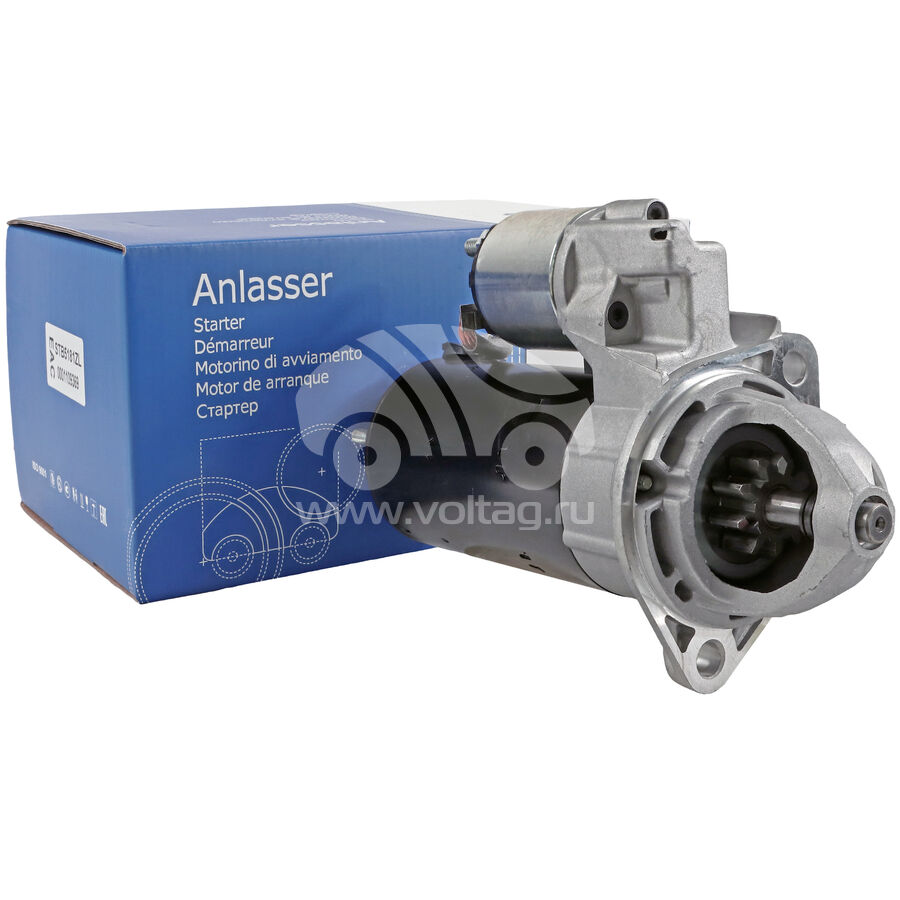

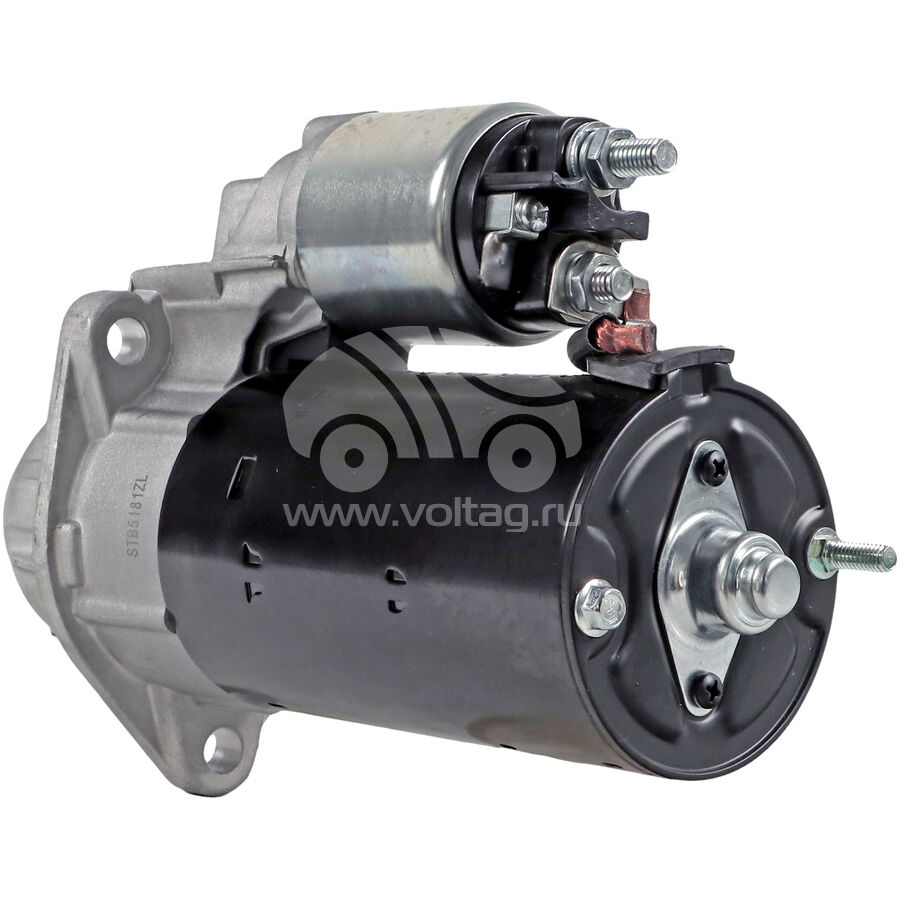

Starter STB3181
Starter STB3181
Starter STB3181
Starter STB3181
Starter STB3181
Starter STB3181

Crosses

AS UD03385S
Bosch 0001223016, 0001223021, 0986019820, 1986S00755
Cargo 113181
CAS CST10226, CST10226AS, CST10226GS, CST10359AS, CST21131GS, CST21139GS
Delco Remy 19083027, DRS9820
DEUTZ 01181751, 01182124, 01182382, 01182384, 01183404, 01183599, 04300006
HC-PARTS 113181
Iskra 11131223, 11131948, 11131949, AZE4213, AZE4556, AZE4566, AZE6509, AZE6530, AZE6554, AZE6555, IS1073, IS1217
KHD 1181751, 118-2124, 118-2382, 1182384, 1183404, 4300006, 4300007
KRAUF STB0181JA, STB3181JA, STB3181LC
KRAUF STB3181LCKRAUF STB3181LCKRAUF STB3181LCKRAUF STB3181LCKRAUF STB3181LC
, STB3181MN
KRAUF STB3181MNKRAUF STB3181MNKRAUF STB3181MNKRAUF STB3181MNKRAUF STB3181MN
, STB3181RN
KRAUF STB3181RNKRAUF STB3181RNKRAUF STB3181RNKRAUF STB3181RNKRAUF STB3181RN
, STB3181SU
KRAUF STB3181SUKRAUF STB3181SUKRAUF STB3181SUKRAUF STB3181SUKRAUF STB3181SU
, STB3181UL
KRAUF STB3181ULKRAUF STB3181ULKRAUF STB3181ULKRAUF STB3181ULKRAUF STB3181UL
, STB3181YN
KRAUF STB3181YNKRAUF STB3181YNKRAUF STB3181YNKRAUF STB3181YNKRAUF STB3181YN
, STB5181BA
KRAUF STB5181BAKRAUF STB5181BAKRAUF STB5181BAKRAUF STB5181BAKRAUF STB5181BA
, STB5181MA
KRAUF STB5181MAKRAUF STB5181MAKRAUF STB5181MAKRAUF STB5181MAKRAUF STB5181MA
, STB5181MN
KRAUF STB5181MNKRAUF STB5181MNKRAUF STB5181MNKRAUF STB5181MNKRAUF STB5181MN
, STB5181ZL, STI3181SU
KRAUF STI3181SUKRAUF STI3181SUKRAUF STI3181SUKRAUF STI3181SUKRAUF STI3181SU
, STI3181UL
KRAUF STI3181ULKRAUF STI3181ULKRAUF STI3181ULKRAUF STI3181ULKRAUF STI3181UL
, STI5181SU
KRAUF STI5181SUKRAUF STI5181SUKRAUF STI5181SUKRAUF STI5181SUKRAUF STI5181SU
, STN3181LP
KRAUF STN3181LPKRAUF STN3181LPKRAUF STN3181LPKRAUF STN3181LPKRAUF STN3181LP
Liebherr 7264098
Magneti Marelli 063522230160, MSN2035
MAHLE 72735655, MS27, MS28
MAHLE MS28MAHLE MS28MAHLE MS28MAHLE MS28MAHLE MS28
Motorherz STB3181RB, STB3181WA
Motorherz STB3181WAMotorherz STB3181WAMotorherz STB3181WAMotorherz STB3181WAMotorherz STB3181WA
, STB5181WA
Motorherz STB5181WAMotorherz STB5181WAMotorherz STB5181WAMotorherz STB5181WAMotorherz STB5181WA
, STI3181RB, STI3181WA
Motorherz STI3181WAMotorherz STI3181WAMotorherz STI3181WAMotorherz STI3181WAMotorherz STI3181WA
TEREX 5411664866
VOLVO 2908534
WPS 18951N
ZAUFER 300N10018Z

Application

GENIE GTH-3007 Deutz TD2011L04W 2005- TEREX TC75 2005- Deutz TD2011L04W HOLDER C9.78H Tool Carrier BF4M2012 Deutz 2000- KHD ENGINES BF4M2011 2000- VOLVO CONSTRUCTION EQUIPMENT L30B Volvo D3.6D (Deutz) 2000- VOLVO CONSTRUCTION EQUIPMENT L35B Volvo D3.6D (Deutz) 2000- VOLVO CONSTRUCTION EQUIPMENT L20B Volvo D3.6D (Deutz) 2002-2009 VOLVO CONSTRUCTION EQUIPMENT L25B Volvo D3.6D (Deutz) 2002-2009

Replacing

Components

(all)
AS S0101
Armature
Yoke, Field case
Bosch 0001223016
Alternator nut
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Gear wheel
Planet gear
Damper
Brush Holder
Brush set
Repair kit
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Lever
Starter bolt
Cover
Lever
Retainer
Lock Ring
Lever
Terminal Lead
Bosch 0001223021
Starter Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Brush Holder
Brush set
Repair kit
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Starter bolt
Lever
Iskra 11131223
Bushing
Iskra AZE6554
Starter Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Field coil
Gear wheel
Gear Plate
Planet gear
Brush Holder
Brush set
Solenoid
Lever
Iskra AZE6555
Starter Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Drive
Field coil
Damper
Outer Gear
Gear wheel
Gear Plate
Planet gear
Brush Holder
Brush set
Solenoid
Bushing
Starter bolt
Starter bolt
Lever
Iskra IS1073
Lever
Iskra IS1217
Lever
KHD 1182384
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Starter bolt
Lever
Terminal Lead
KRAUF STB3181BA
Needle Bearing
Armature
D.E. Brackets
C.E. Bracket
Drive
Planet gear
Brush Holder
Repair kit
Solenoid
Bushing
Bushing
Cover
Starter bolt
KRAUF STB3181LC
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Damper
Brush Holder
Repair kit
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Starter bolt
Lever
Terminal Lead
KRAUF STB3181MN
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Starter bolt
Lever
Terminal Lead
KRAUF STB3181RN
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Starter bolt
Lever
Terminal Lead
KRAUF STB3181SU
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Starter bolt
Lever
Terminal Lead
KRAUF STB3181UL
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Damper
Brush Holder
Brush set
Repair kit
Solenoid
Bushing
Bushing
Lever
KRAUF STB3181YN
Alternator nut
Needle Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Gear wheel
Planet gear
Damper
Brush Holder
Brush set
Repair kit
Solenoid
Bushing
Bushing
Starter bolt
Bolt
Lever
Starter bolt
Cover
Retainer
Lock Ring
Lever
Terminal Lead
KRAUF STB5181BA
Alternator nut
Needle Bearing
Armature
D.E. Brackets
C.E. Bracket
Drive
Yoke, Field case
Damper
Gear wheel
Outer Gear
Gear wheel
Planet gear
Brush set
Brush Holder
Repair kit
Solenoid
Bushing
Bushing
Bushing
Starter bolt
Lever
Bearing Plate
Cover
Starter bolt
Alternator bolt
KRAUF STB5181MN
Alternator nut
Needle Bearing
Armature
D.E. Brackets
C.E. Bracket
Drive
Yoke, Field case
Damper
Gear wheel
Outer Gear
Gear wheel
Planet gear
Brush set
Brush Holder
Repair kit
Solenoid
Bushing
Bushing
Bushing
Starter bolt
Lever
Bearing Plate
Cover
Starter bolt
Alternator bolt
KRAUF STI3181SU
Starter Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Field coil
Damper
Outer Gear
Gear wheel
Gear Plate
Planet gear
Brush Holder
Brush set
Solenoid
Bushing
Starter bolt
Starter bolt
Lever
KRAUF STI5181SU
Starter Bearing
Armature
C.E. Bracket
D.E. Brackets
Drive
Field coil
Gear wheel
Gear Plate
Planet gear
Brush Holder
Brush set
Solenoid
Lever
Motorherz STB3181WA
Armature
C.E. Bracket
D.E. Brackets
Drive
Yoke, Field case
Outer Gear
Planet gear
Damper
Brush Holder
Brush set
Repair kit
Solenoid
Bushing
Bushing
Lever
Motorherz STB5181WA
Needle Bearing
Armature
D.E. Brackets
C.E. Bracket
Drive
Planet gear
Brush Holder
Repair kit
Solenoid
Bushing
Bushing
Cover
Starter bolt
All components
Alternator nut
Needle Bearing
Starter Bearing
Starter Bearing
Armature
Armature
Armature
C.E. Bracket
D.E. Brackets
D.E. Brackets
C.E. Bracket
C.E. Bracket
D.E. Brackets
Drive
Drive
Drive
Drive
Yoke, Field case
Yoke, Field case
Field coil
Outer Gear
Damper
Gear wheel
Planet gear
Damper
Outer Gear
Gear wheel
Planet gear
Gear wheel
Gear Plate
Planet gear
Brush Holder
Brush set
Brush set
Brush Holder
Brush Holder
Brush set
Repair kit
Repair kit
Repair kit
Solenoid
Solenoid
Solenoid
Solenoid
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Starter bolt
Bolt
Lever
Starter bolt
Cover
Lever
Retainer
Lock Ring
Lever
Bearing Plate
Cover
Starter bolt
Starter bolt
Lever
Terminal Lead
Alternator bolt


Starter STB3181 - отзывы (4)

Для STB3181 подходит втягивающее 133644 CG
Добрый день, большое спасибо за то что поделились информацией, после небольшой проверки обязательно внесем в каталог. Еще раз спасибо за Ваше обращение.
Для STB3181 подходит втягивающее 231653CG
STI3181UL - конструкция Бош
