Part type:
(show)
STB1213


Specification

vo: Voltage
12
 volt
po: Power KWt
1.1
 kw
te: Number of teeth 9 pcs
ro: Rotation CR
a: Size A 66 mm
b: Drive distance 12 mm
le: Lenght 210 mm
o1: Number of mounting holes 3 pcs
o2: Number of threaded mounting holes 2 pcs
od: Drive diameter ( outer ) 24 mm

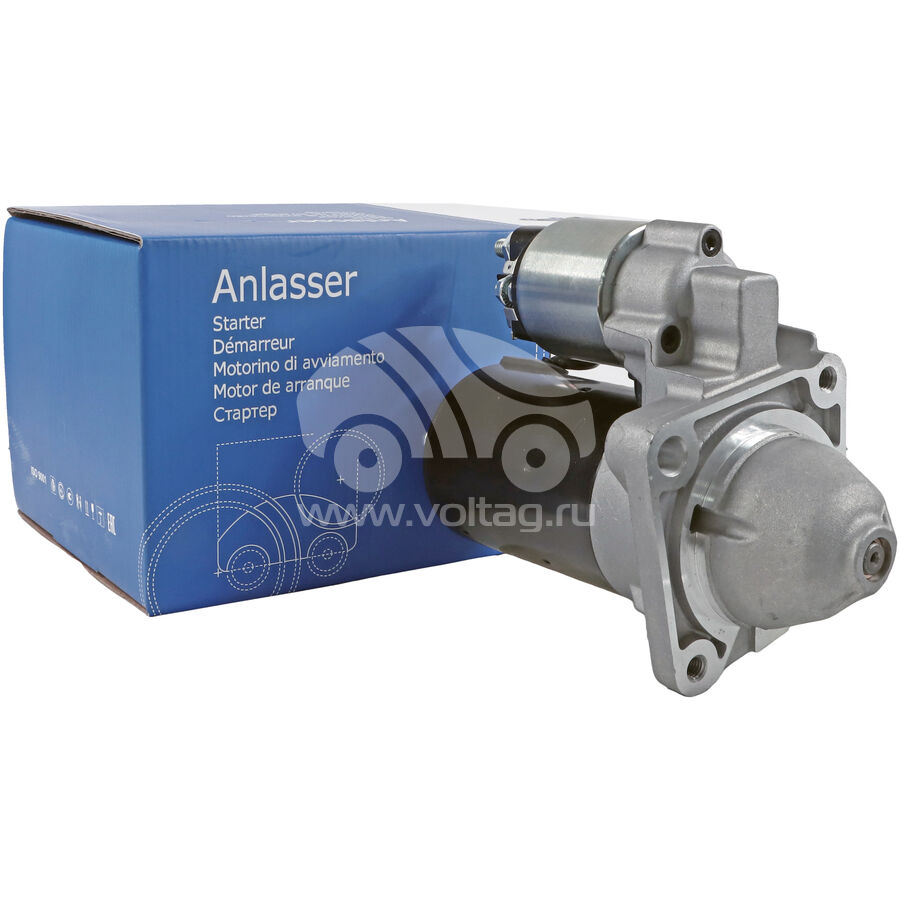

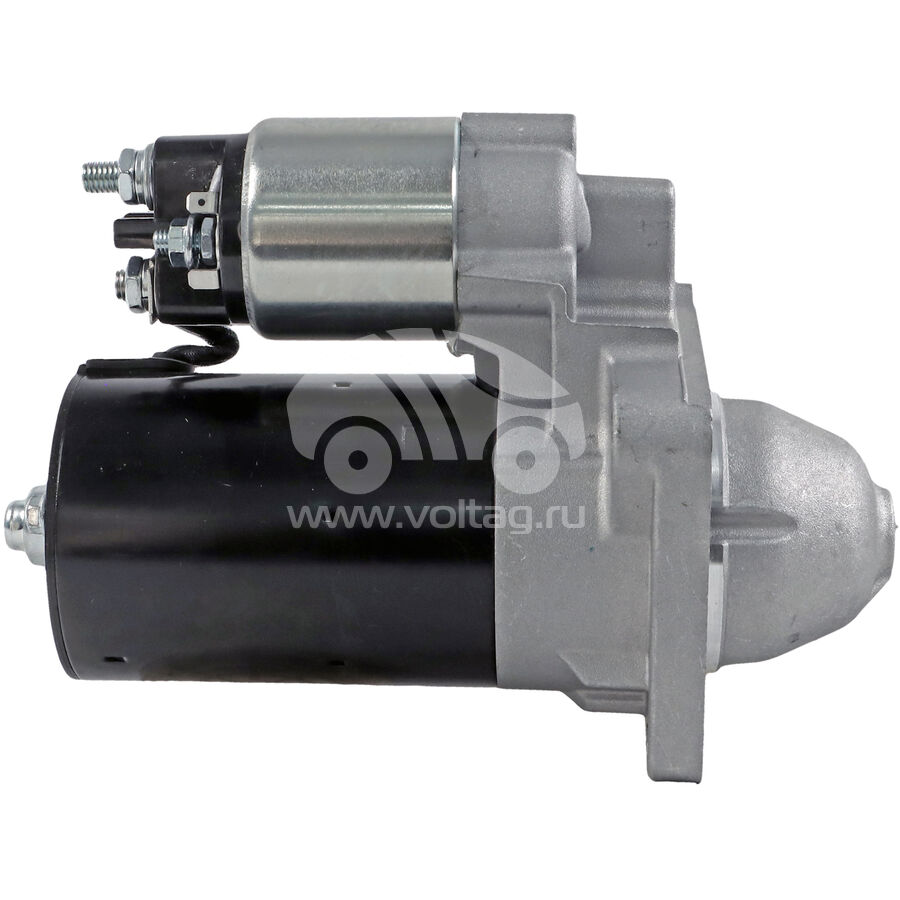

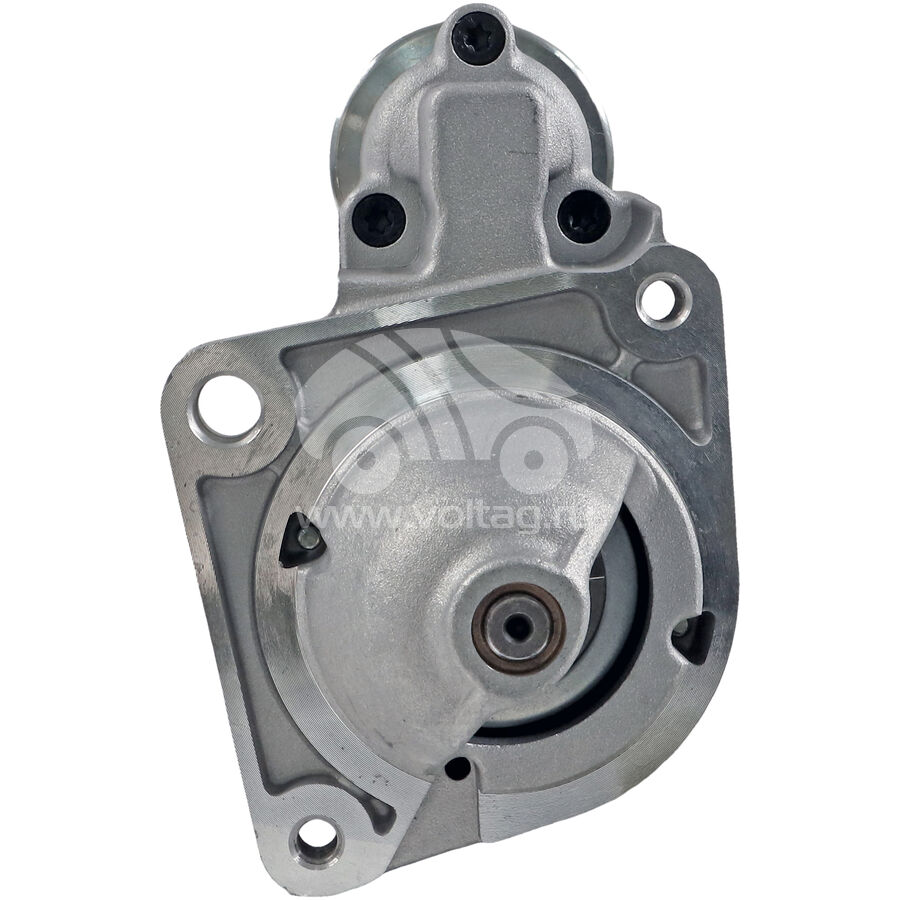

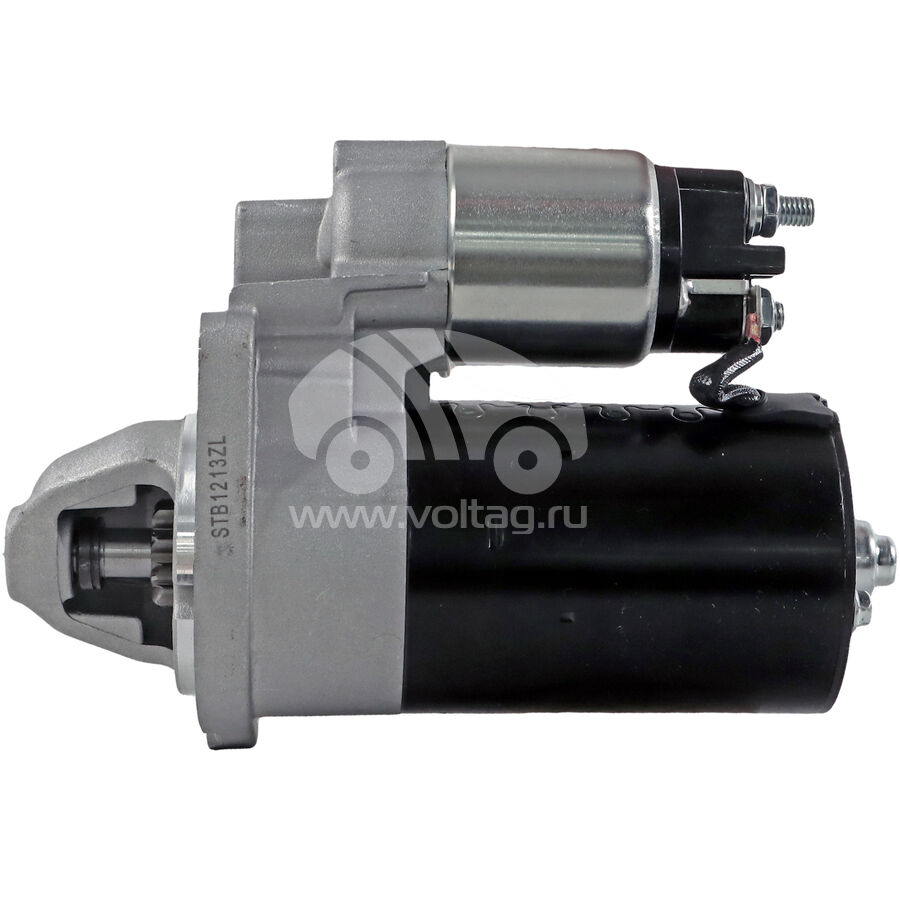

Starter STB1213
Starter STB1213
Starter STB1213
Starter STB1213
Starter STB1213
Starter STB1213

Crosses

Bosch 0001107091, 0001107097, 0001107109, 0001107110, 0001107111, 0986018880
Cargo 112445, 116336
CAS CST10201GS
FIAT 46748349, 46748350, 46821681, 500528093, 51776205, 51832956, 55193407, 71782395
HC-PARTS CS1213
KRAUF STB1213BA
KRAUF STB1213BAKRAUF STB1213BAKRAUF STB1213BAKRAUF STB1213BAKRAUF STB1213BA
Motorherz STB1213RB
Valeo 438145, 458255, 458505
WPS 32582N
ZAUFER 300N11559Z

Application

FIAT Albea 1.6 16V [182B6.000] 01.2002- FIAT Brava 1.6 16V [182A4.000] 01.2000-12.2001 FIAT Brava 1.6 16V [182B6.000] 01.1999-12.2002 FIAT Brava 1.6 16V SX [182A4.000] 02.1996-10.2001 FIAT Bravo 1.6 [182A6.000] 10.1995-10.2001 FIAT Bravo 1.6 16V [182A4.000] 01.2000-12.2001 FIAT Bravo 1.6 SX [182A4.000] 03.1996-10.2001 FIAT Capagnola 1.6 16V 03.1996-10.2001 FIAT Doblo 1.6 [182B6.000] 09.2002- FIAT Doblo 1.6 i.e. 16V [182B6.000] 10.2001- FIAT Doblo Cargo 1.6 16V [182B6.000] 10.2001- FIAT Doblo Cargo 1.6 Natural Power [182B6.000] 09.2002- FIAT Marea 1.6 16V [182A4.000] 01.1999- FIAT Marea 1.6 16V [182B6.000] 01.2000-12.2002 FIAT Marea 1.6 16V Bipower [185A3.000] 04.1999- FIAT Marea 1.6 i 16V [182A4.000] 09.1996- FIAT Marea Weekend 1.6 16V [182A4.000] 09.1996-05.2002 FIAT Multipla 1.6 16V [182A4.000] 01.1998-12.2002 FIAT Multipla 1.6 16V [182A4.000] 04.1999-06.2010 FIAT Multipla 1.6 16V [182B6.000] 01.2000- FIAT Multipla 1.6 16V Bipower [182B6.000] 10.2001-06.2010 FIAT Multipla 1.6 16V Bipower [186A4.000] 04.1999-06.2010 FIAT Multipla 1.6 16V Blupower [182B6.000] 01.2002- FIAT Multipla 1.6 16V Blupower [182B6.000] 04.2002-06.2010 FIAT Multipla 1.6 16V Blupower [186A3.000] 04.1999-06.2010 FIAT Multipla 1.6 16V GPL [182B6.000] 10.2001-06.2010 FIAT Palio 1.6 16V [182B6.000] 02.2001- FIAT Petra 1.6 16V [182B6.000] 01.2002- FIAT Siena 1.6 16V [182B6.000] 01.2002-12.2004 FIAT Stilo 1.6 16V [182B6.000] 01.2001-12.2004 FIAT Stilo 1.6 16V [182B6.000] 10.2001- FIAT Stilo 1.6 16V [182B6.000] 01.2003- FIAT Stilo Multi Wagon 1.6 16V [182B6.000] 01.2003-08.2008 LANCIA Lybra 1.6 16V [182A4.000] 07.1999- LANCIA Lybra 1.6 i 16V [182A4.000] 01.2000-

Replacing

Components

(all)
Bosch 0001107091
Alternator nut
Needle Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Outer Gear
Gear Plate
Planet gear
Brush set
Starter Brush Holder
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Starter bolt
Lever
Retainer
Solenoid Cap
Lever
Cover
Starter bolt
Alternator bolt
Bosch 0001107097
Alternator nut
Needle Bearing
Armature
C.E. Bracket
Drive
Yoke, Field case
Outer Gear
Gear Plate
Planet gear
Brush set
Starter Brush Holder
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Starter bolt
Lever
Retainer
Solenoid Cap
Lever
Cover
Starter bolt
Alternator bolt
Bosch 0001107109
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush set
Brush Holder
Repair kit
Solenoid
Solenoid
Bushing
Bushing
Bushing
Bushing
Starter bolt
Lever
Cover
Retainer
Solenoid Cap
Cover
Starter bolt
Alternator bolt
Bosch 0001107110
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush set
Brush Holder
Solenoid
Solenoid
Bushing
Bushing
Bushing
Starter bolt
Lever
Retainer
Retainer
Solenoid Cap
Cover
Starter bolt
Bosch 0001107111
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush set
Solenoid
Solenoid
Bushing
Bushing
Bushing
Starter bolt
Lever
Retainer
Retainer
Solenoid Cap
Cover
Starter bolt
FIAT 46748349
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush set
Brush Holder
Solenoid
Solenoid
Bushing
Bushing
Bushing
Starter bolt
Lever
Retainer
Retainer
Solenoid Cap
Cover
Starter bolt
KRAUF STB1213BA
Armature
C.E. Bracket
Drive
Yoke, Field case
Planet gear
Brush set
Brush Holder
Solenoid
Solenoid
Bushing
Bushing
Bushing
Starter bolt
Lever
Retainer
Retainer
Solenoid Cap
Cover
Starter bolt
Valeo 438145
Armature
Drive
Magnet
Yoke, Field case
Gear wheel
Planet gear
Planet gear
Brush set
Repair kit
Repair kit
Solenoid
Lever
All components
Alternator nut
Needle Bearing
Armature
Armature
C.E. Bracket
Drive
Drive
Yoke, Field case
Magnet
Yoke, Field case
Outer Gear
Gear Plate
Planet gear
Gear wheel
Planet gear
Planet gear
Brush set
Brush set
Starter Brush Holder
Brush Holder
Brush Holder
Brush set
Repair kit
Repair kit
Repair kit
Solenoid
Solenoid
Solenoid
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Bushing
Starter bolt
Lever
Cover
Retainer
Retainer
Solenoid Cap
Lever
Cover
Starter bolt
Lever
Alternator bolt
