Part type:
(show)
SDR1152


Specification

te: Number of teeth
11
 pcs
od: Drive diameter ( outer )
29.5
 mm
ro: Rotation ACR
le: Total lenght of drive 64 mm
sr: Number of splines (rear) 8 pcs
id: Drive diameter ( inner ) 12 mm
hi: O.d. housing 45 mm
d2: Shaft diametr 12 mm

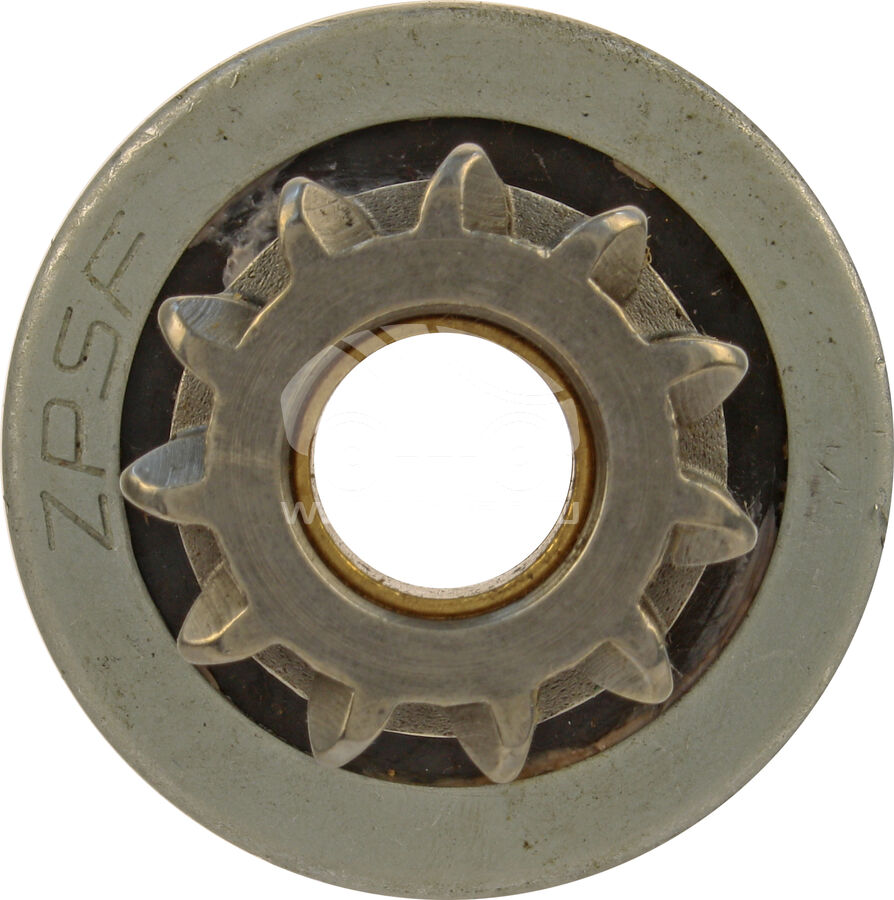

Drive SDR1152
Drive SDR1152
Drive SDR1152
Drive SDR1152
Drive SDR1152

Crosses

UAZ 02.541
UAZ 02.541UAZ 02.541UAZ 02.541UAZ 02.541UAZ 02.541

Application

LADA 110 1.5 [VAZ-2111] 01.1996-12.2000 LADA Nova 1.7 1700 [ECE] 08.1994-12.2000 LADA Samara 1.1 1100 [BA321081] 02.1988-12.1994 LADA Samara 1.1 1100 [BA321081] 02.1988-12.1994 LADA Samara 1.1 1100 [BA321081] 02.1996- LADA Samara 1.1 1100 Forma [BA321081] 07.1991-12.2000 LADA Samara 1.3 1300 [BA32108] 01.1986-07.1997 LADA Samara 1.3 1300 [BA32108] 01.1986-12.1994 LADA Samara 1.3 1300 [BA321115] 01.1986- LADA Samara 1.3 1300 [BA321115] 02.1996- LADA Samara 1.3 1300 Forma [BA32108] 05.1989-07.1997 LADA Samara 1.5 [VAZ-2111] 01.2000- LADA Samara 1.5 1500 [BA321083] 01.1988- LADA Samara 1.5 1500 [BA32111] 09.1991- LADA Samara 1.5 1500 Forma [BA321083] 07.1991- LADA Samara 1.5 1500 Forma [BA32111] 11.1994- LADA Samara 1.5 Forma [VAZ-2111] 01.2000-
