Part type:
(show)
ALN0546


Specification

vo: Voltage
12
 volt
am: Amperage
75
 amp
a: Size A 92 mm
b: Size B 56 mm
gr: Grooves/pulley 5 pcs
st: Terminal type L-IG-S
vp: Vacuum Pump no

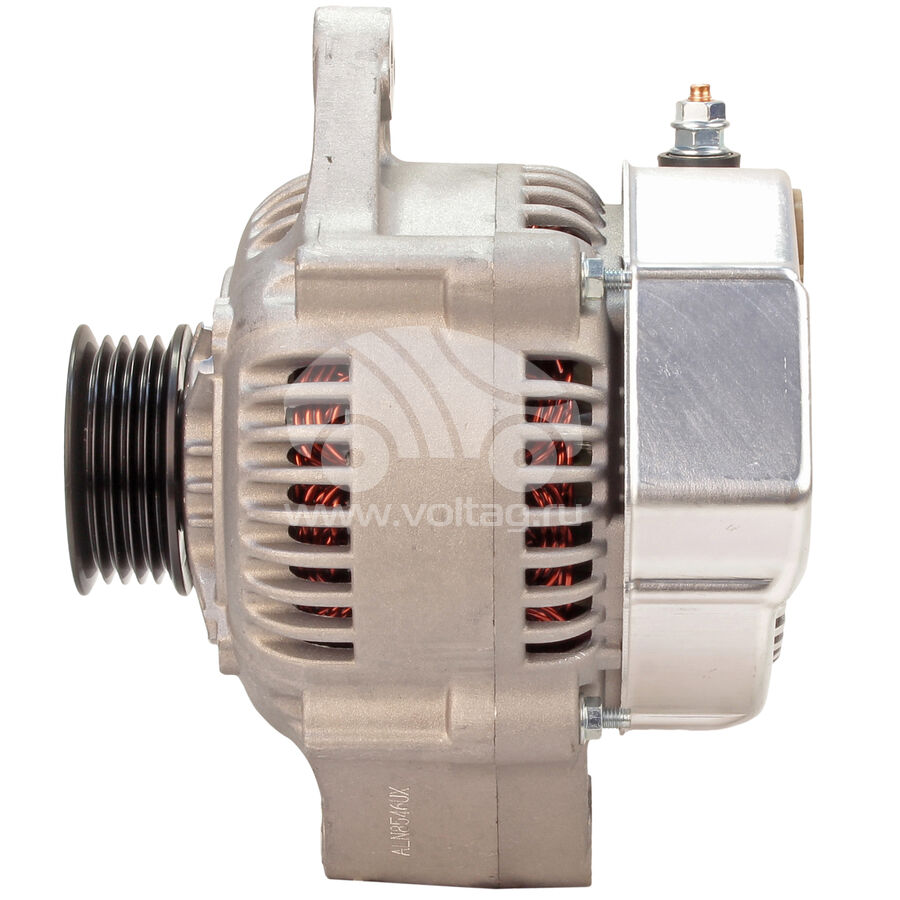

Alternator ALN0546
Alternator ALN0546
Alternator ALN0546

Crosses

Bosch 0986UR0966, F032CA1351
Cargo 110675, 111536
Delco Remy DRA3514
Denso 1002111260, 100211210, 1002112102, 1002112410, 1002112450, 100211250, 1002112500, 1002112501, 1002113030, 100211326, 1002113261, 100211706, 1002117060, 1002117061, 100211745, 1002117450, 1002117860, 1002117861, 1002118390, 1002118391, 1002118392, 1002118490
HB J5112126
HC-PARTS JA1351IR, JA546IR
HELLA 8EL737495001
Isuzu 8941313572, 8941725860, 8944086740
KRAUF ALN0344GB
KRAUF ALN0344GBKRAUF ALN0344GBKRAUF ALN0344GBKRAUF ALN0344GBKRAUF ALN0344GBKRAUF ALN0344GB
, ALN0344LK
KRAUF ALN0344LKKRAUF ALN0344LKKRAUF ALN0344LKKRAUF ALN0344LKKRAUF ALN0344LKKRAUF ALN0344LK
, ALN0546UX
KRAUF ALN0546UXKRAUF ALN0546UXKRAUF ALN0546UXKRAUF ALN0546UXKRAUF ALN0546UXKRAUF ALN0546UX
, ALN8546UX
KRAUF ALN8546UXKRAUF ALN8546UXKRAUF ALN8546UXKRAUF ALN8546UXKRAUF ALN8546UXKRAUF ALN8546UX
Motorherz ALN0344RB, ALN0344WA, ALN8546RB
Toyota 2706043990, 2706072100, 2706072170, 2706072171, 2706076020, 2706076030
Unipoint ALT5051, ALT5055
Valeo 437856
WAI 13276N
WPS 13276N
ZAUFER 301N22065Z

Application

TOYOTA Hi-Ace III 2.0 H50 1989-1993 1998ccm 1RZ/ TOYOTA Lite-Ace 2.2 CR2 1992-1995 2237ccm 4Y-EC / TOYOTA Model-F 2.0 ..R21 1988-1992 1998ccm 3Y/ TOYOTA Model-F 2.2 ..R21 1985-1990 2237ccm 4Y-EC/ TOYOTA Space Cruiser 2.0 1986-1992 1998ccm 3Y

Replacing

Components

(all)
Denso 1002111260
D.E. Brackets
Rectifier
Stator
Brush set
Brush Holder
Pulley
Regulator
Rotor
Alternator nut
Alternator nut
Alternator nut
Bearing Plate
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Alternator bolt
Bearing Plate
Alternator bearing
Alternator bearing
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Denso 1002112102
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Regulator
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002112410
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Regulator
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002112450
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Slip ring
Rotor
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002112500
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002113030
Rotor
Denso 1002117060
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Pulley
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002117061
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Slip ring
Rotor
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002117450
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Denso 1002117860
Rectifier
Denso 1002117861
S.R.E. Cover (Plastic)
D.E. Brackets
Rectifier
Rectifier
Stator
Brush set
Brush Holder
Regulator
Regulator
Rotor
Bearing Plate
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Alternator nut
Washer
Washer
Alternator bolt
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Denso 1002118390
Rectifier
Denso 1002118391
Rectifier
Denso 1002118392
D.E. Brackets
Rectifier
Rectifier
Stator
Brush set
Brush Holder
Regulator
Regulator
Regulator
Slip ring
Slip ring
Rotor
Alternator nut
Alternator nut
Bearing Plate
Alternator nut
Washer
Washer
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Alternator bolt
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Denso 1002118490
D.E. Brackets
Rectifier
Rectifier
Stator
Brush set
Brush Holder
Regulator
Regulator
Regulator
Slip ring
Slip ring
Rotor
Alternator nut
Alternator nut
Bearing Plate
Alternator nut
Washer
Washer
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Alternator bolt
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Isuzu 8941313572
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Slip ring
Rotor
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Isuzu 8941725860
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Slip ring
Rotor
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
Isuzu 8944086740
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Slip ring
Rotor
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
KRAUF ALN0344GB
S.R.E. Bracket
D.E. Brackets
Rectifier
Rectifier
Stator
Brush set
Brush Holder
Pulley
Regulator
Regulator
Regulator
Slip ring
Slip ring
Rotor
Alternator nut
Alternator nut
Bearing Plate
Alternator nut
Washer
Washer
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Alternator bolt
Alternator bearing
Alternator bearing
Connector
Alternator/Starter bolt
KRAUF ALN0546UX
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Regulator
Regulator
Rotor
Alternator nut
Alternator nut
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
KRAUF ALN8546UX
S.R.E. Cover (Plastic)
Rectifier
Stator
Brush set
Brush Holder
Pulley
Regulator
Regulator
Rotor
Alternator nut
Alternator nut
Alternator nut
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Washer
Washer
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator/Starter bolt
Alternator bolt
All components
D.E. Brackets
S.R.E. Cover (Plastic)
S.R.E. Bracket
D.E. Brackets
D.E. Brackets
Rectifier
Rectifier
Rectifier
Rectifier
Stator
Stator
Stator
Brush set
Brush Holder
Brush Holder
Pulley
Pulley
Pulley
Pulley
Regulator
Regulator
Regulator
Regulator
Regulator
Slip ring
Slip ring
Slip ring
Rotor
Rotor
Rotor
Alternator nut
Alternator nut
Bearing Plate
Bearing Plate
Alternator nut
Bearing Plate
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Alternator nut
Washer
Washer
Insulator ( Alternator )
Oil Seal Kit
Insulator ( Alternator )
Insulator ( Alternator )
Alternator bolt
Chip
Bearing Plate
Alternator bearing
Alternator bearing
Alternator bearing
Alternator bearing
Alternator bearing
Alternator bearing
Connector
Alternator/Starter bolt
Alternator bolt
