Part type:
(show)
ALM5193


Specification

vo: Voltage
12
 volt
am: Amperage
95
 amp
a: Size A 46 mm
b: Size B 20 mm
c: Size C 39 mm
gr: Grooves/pulley 6 pcs

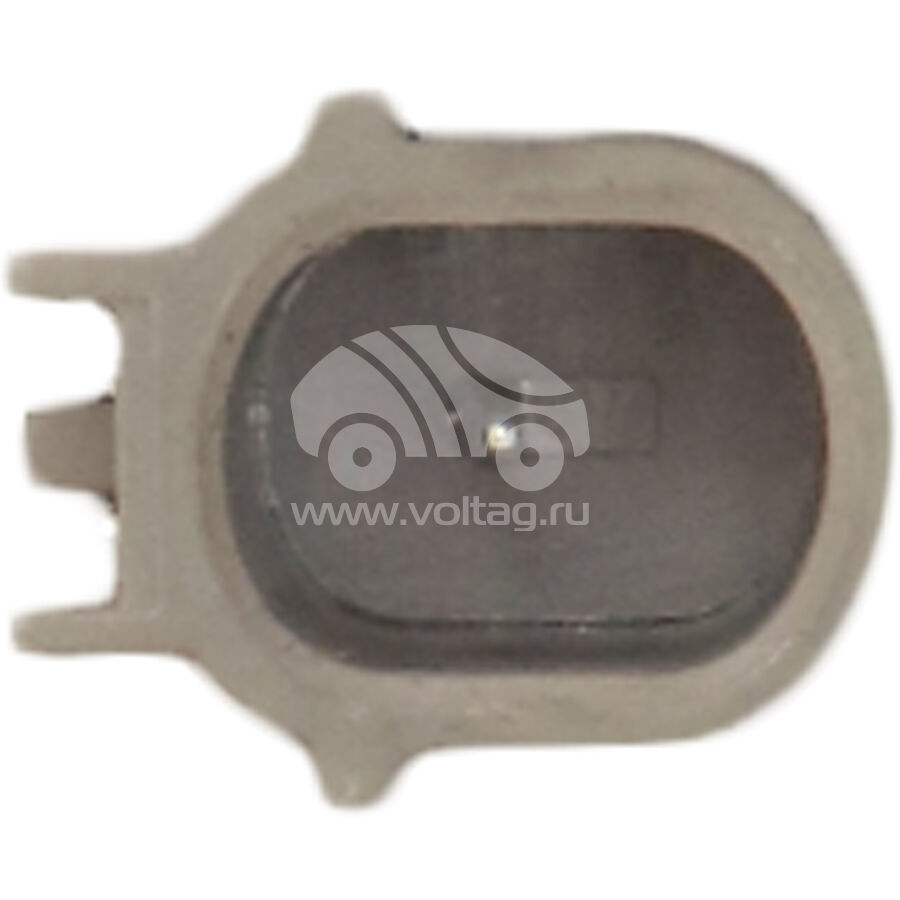

st: Terminal type LIN
id: BSS, LIN IDE 29
ss: Скорость сигнала LMH
vp: Vacuum Pump no

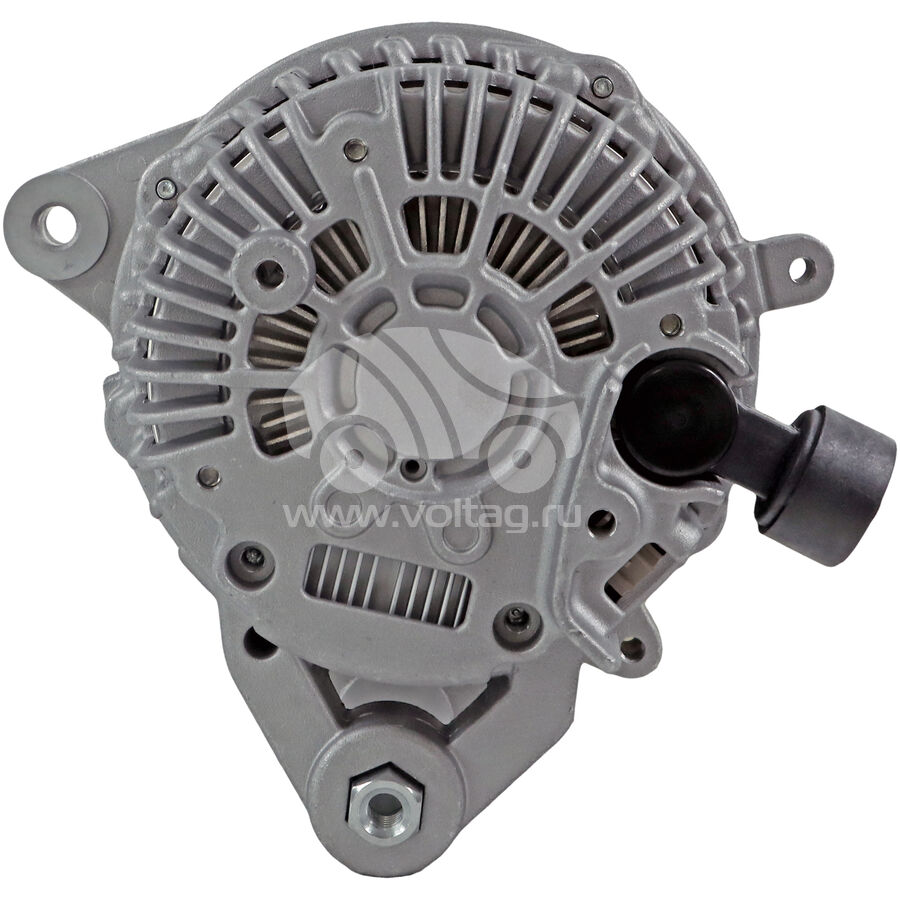

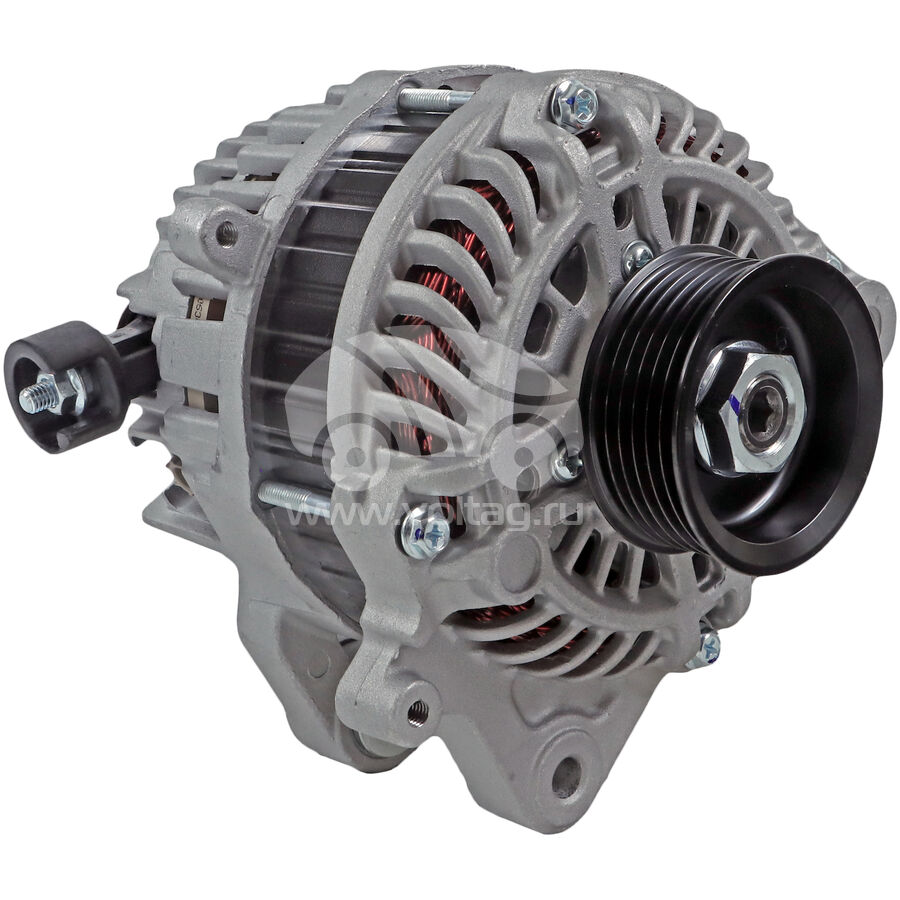

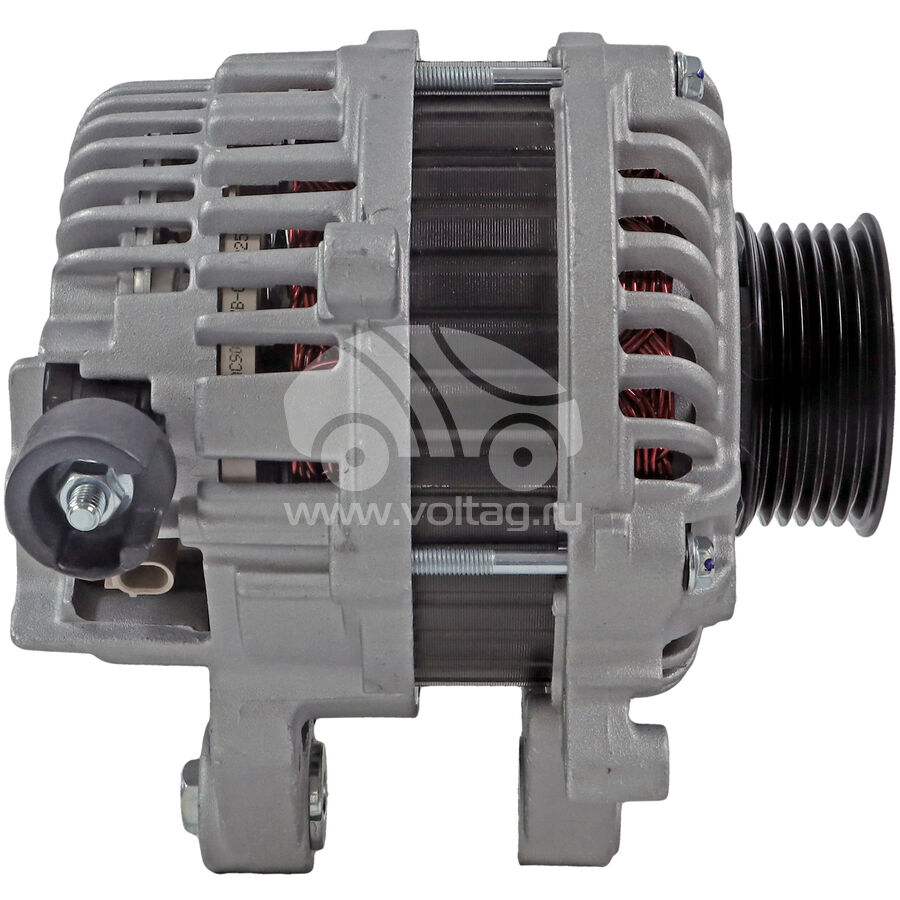

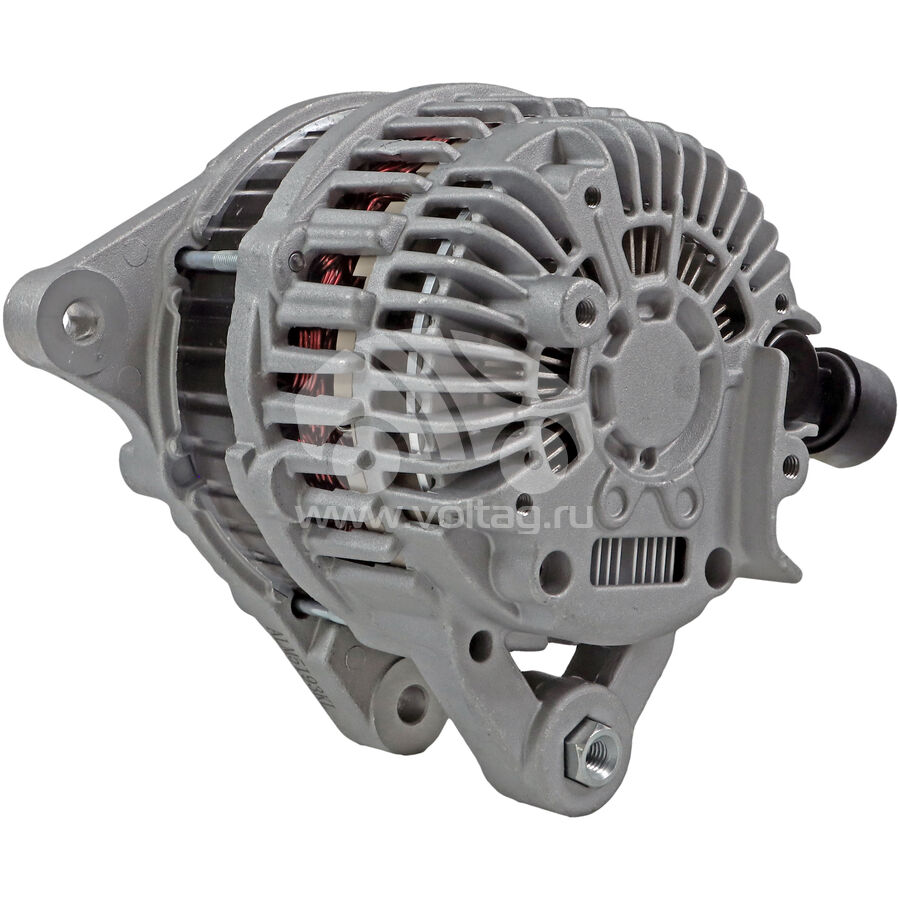

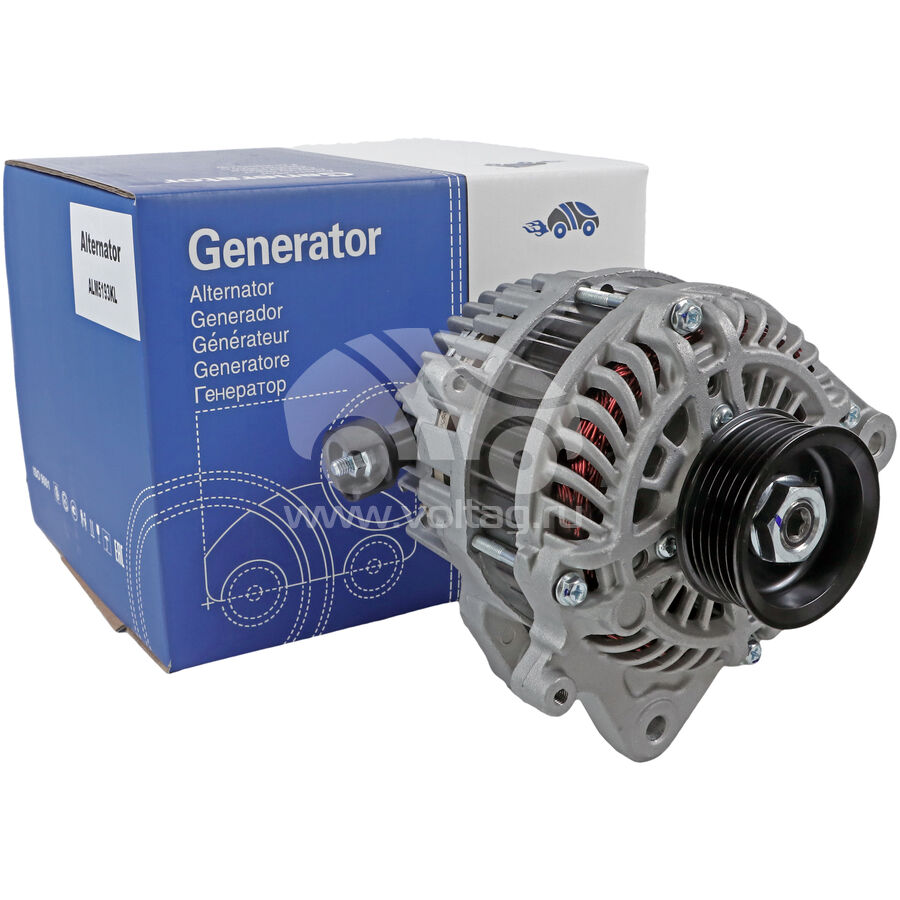

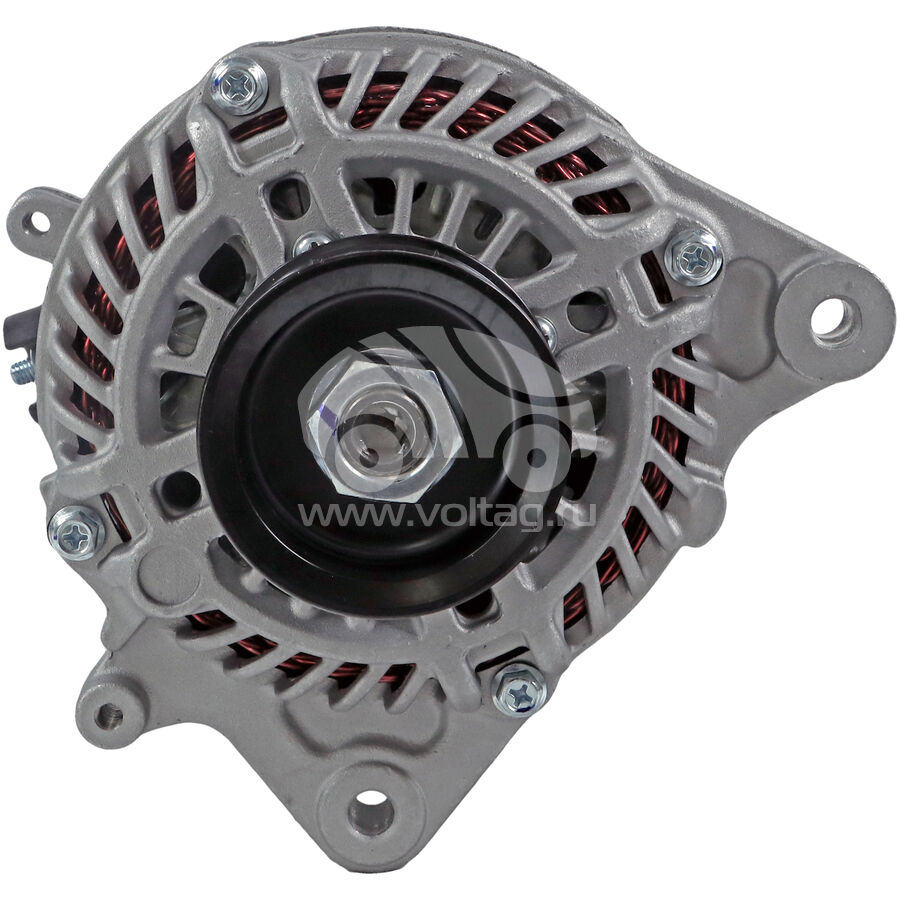

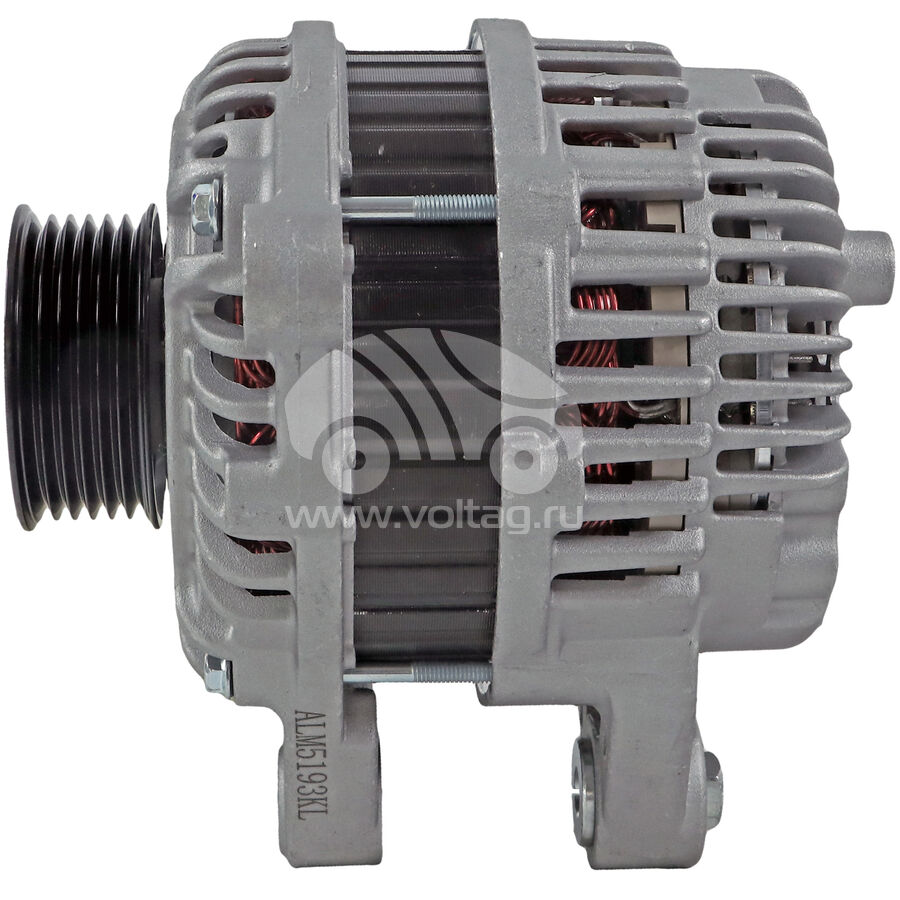

Alternator ALM5193
Alternator ALM5193
Alternator ALM5193

Crosses

CAS CAL35369GS
Delco Remy DRA1081
Honda 06311R1A505RM, 311005FKT01, 31100R1AA01, 31100R1AA010M2, 31100R1AA013M2, 31100R1AA01RM, AHGA115, AHGA81
KRAUF ALM5193BS
KRAUF ALM5193BSKRAUF ALM5193BSKRAUF ALM5193BSKRAUF ALM5193BSKRAUF ALM5193BSKRAUF ALM5193BS
, ALM5193GB
KRAUF ALM5193GBKRAUF ALM5193GBKRAUF ALM5193GBKRAUF ALM5193GBKRAUF ALM5193GBKRAUF ALM5193GB
, ALM5193LP
KRAUF ALM5193LPKRAUF ALM5193LPKRAUF ALM5193LPKRAUF ALM5193LPKRAUF ALM5193LPKRAUF ALM5193LP
, ALM5193NW, ALM5193XH, ALM5193ZD
KRAUF ALM5193ZDKRAUF ALM5193ZDKRAUF ALM5193ZDKRAUF ALM5193ZDKRAUF ALM5193ZDKRAUF ALM5193ZD
Mitsubishi A005TJ0191, A005TJ0191ZC, A005TJ0191ZE, A5TJ0191, A5TJ0191AE, A5TJ0191ZC, A5TJ0191ZD, A5TJ0191ZE, A5TJ0891ZC
Motorherz ALM5193RB
WPS 11537N
ZAUFER 301N21371Z

Application

HONDA Civic 1.4 i-VTEC [L13Z4] 02.2012- HONDA Civic 1.8 i-VTEC [R18Z4] 02.2012- HONDA Civic Tourer 1.8 i-VTEC [R18Z4] 01.2014-

Components

(all)
Honda 311005FKT01
Regulator
Honda 31100R1AA01RM
Rectifier
Stator
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
Honda AHGA115
Regulator
KRAUF ALM5193BS
Rectifier
Stator
Regulator
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
KRAUF ALM5193GB
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
KRAUF ALM5193LP
Regulator
KRAUF ALM5193PH
Rectifier
Stator
Pulley
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
KRAUF ALM5193ZD
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
Mitsubishi A5TJ0191
Rectifier
Stator
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
Mitsubishi A5TJ0191ZC
Stator
Pulley
Regulator
Mitsubishi A5TJ0191ZD
Rectifier
Regulator
Mitsubishi A5TJ0191ZE
Pulley
Regulator
Alternator bearing
Alternator bearing
All components
Rectifier
Stator
Brush set
Pulley
Regulator
Regulator
Slip ring
Bearing Plate
Alternator bearing
Alternator bearing
Alternator bearing
