Part type:
(show)
ALM4296


Specification

vo: Voltage
12
 volt
am: Amperage
150
 amp
a: Size A 37 mm
b: Size B 22 mm
c: Size C 51 mm
gr: Grooves/pulley 6 pcs
st: Terminal type LI-RC-AS(BVS)
vp: Vacuum Pump no

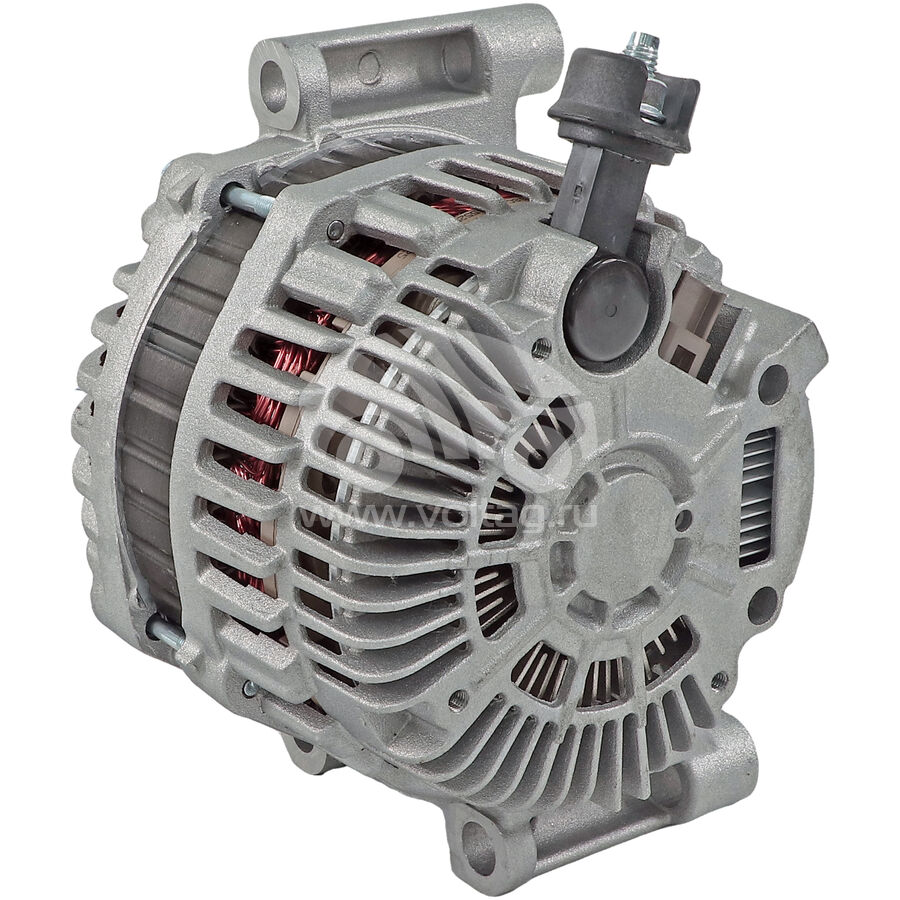

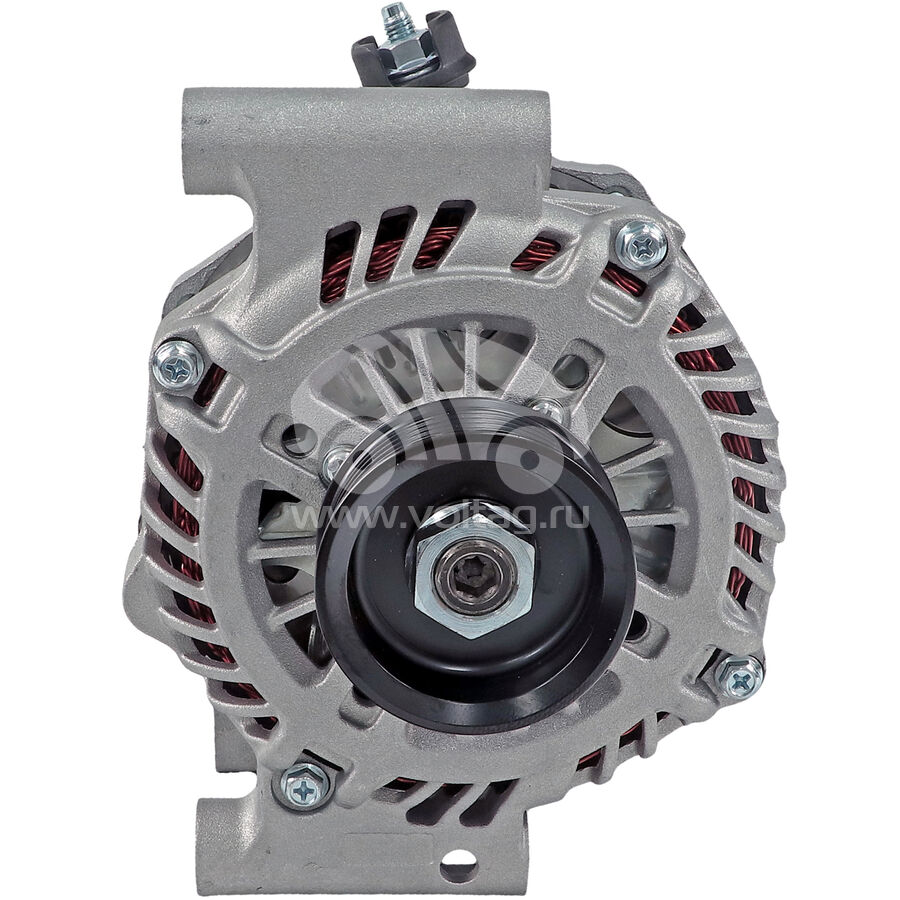

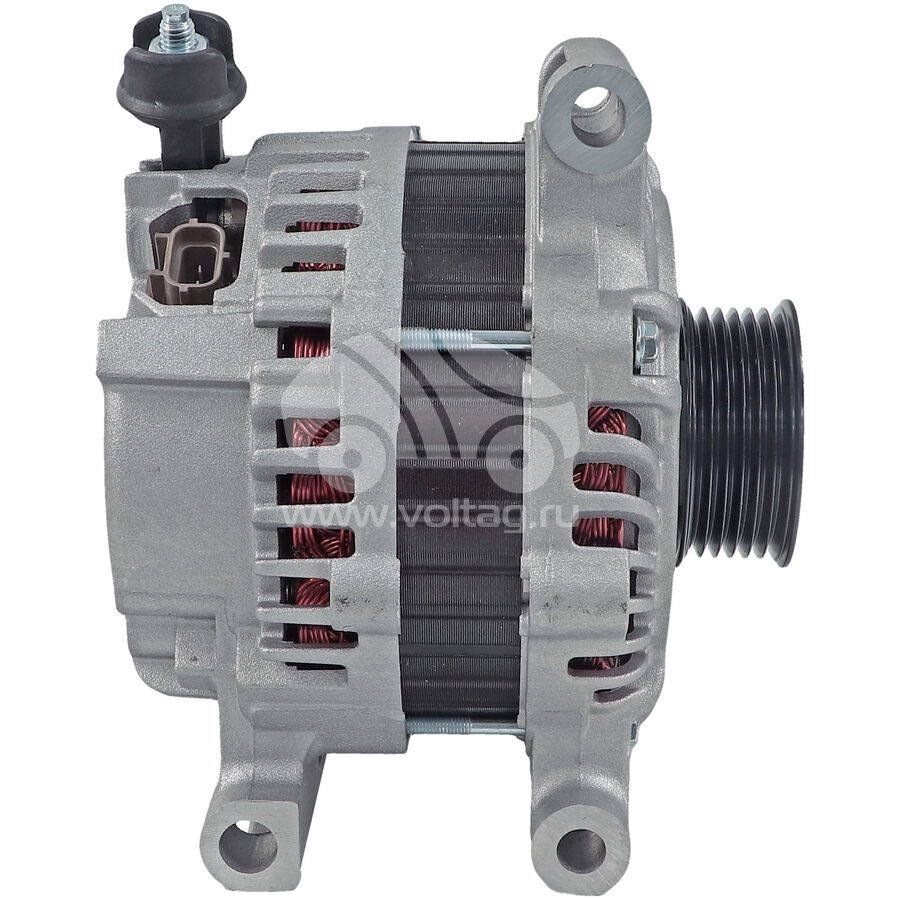

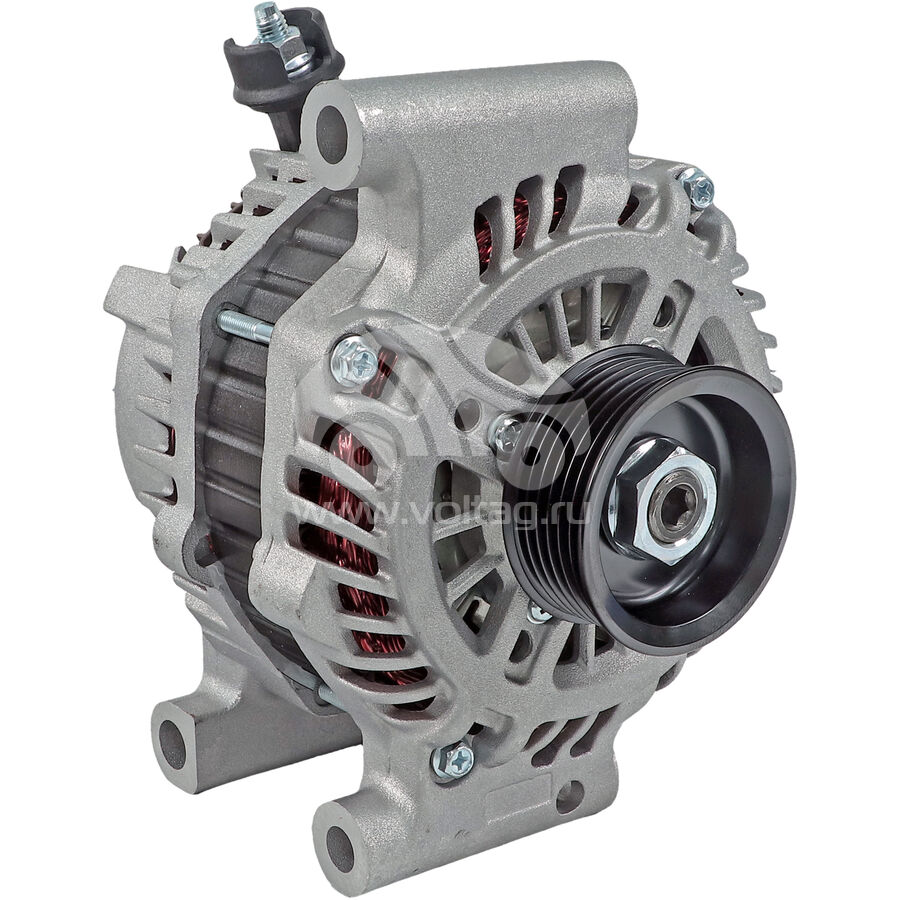

Alternator ALM4296
Alternator ALM4296
Alternator ALM4296
Alternator ALM4296
Alternator ALM4296
Alternator ALM4296
Alternator ALM4296

Crosses

Ford 8L8T10300AA, 8L8TAA, 8L8Z10346A, 8L8Z10346C, 8L8Z10V346CRM
KRAUF ALM4296BS
KRAUF ALM4296BSKRAUF ALM4296BSKRAUF ALM4296BSKRAUF ALM4296BSKRAUF ALM4296BSKRAUF ALM4296BS
Mazda AJ1118300B, AJTM18300B, ZZC618300
Mitsubishi A3TJ2291, A3TJ2291ZC
WPS 11270N
ZAUFER 301N22183Z

Application

FORD ESCAPE 3.0L(182) V6 2008/ MAZDA TRIBUTE 3.0L 2008 to 2009/ MERCURY MARINER 3.0L(183) V6 2008

Replacing

Components

(all)
KRAUF ALM4296BS
Rectifier
Stator
Pulley
Regulator
Rotor
Terminal
Alternator bearing
Alternator bearing
Mitsubishi A3TJ2291
Rectifier
Stator
Pulley
Regulator
Rotor
Terminal
Alternator bearing
Alternator bearing
Mitsubishi A3TJ2291ZC
Rectifier
Regulator
All components
Rectifier
Stator
Pulley
Regulator
Rotor
Terminal
Terminal
Alternator bearing
Alternator bearing
