Part type:
(show)
ALM3291


Specification

vo: Voltage
12
 volt
am: Amperage
110
 amp
a: Size A 25 mm
b: Size B 17 mm
c: Size C 55 mm
gr: Grooves/pulley 7 pcs

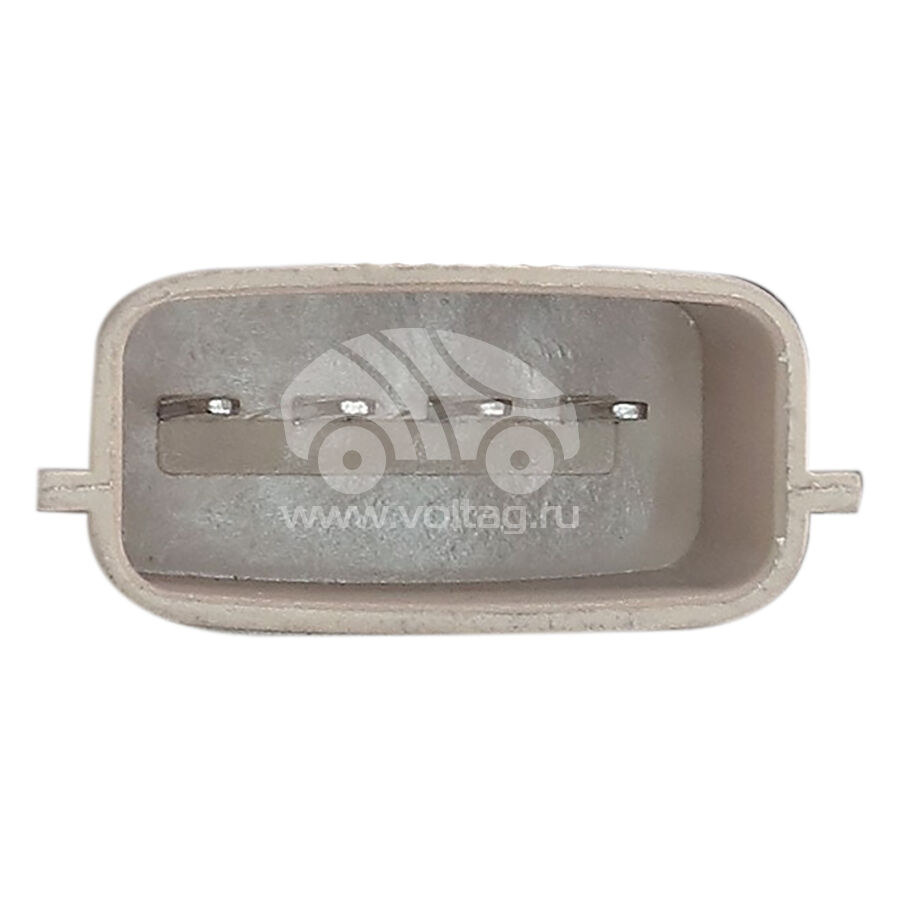

st: Terminal type DFM(FR)-L-S-C(G)

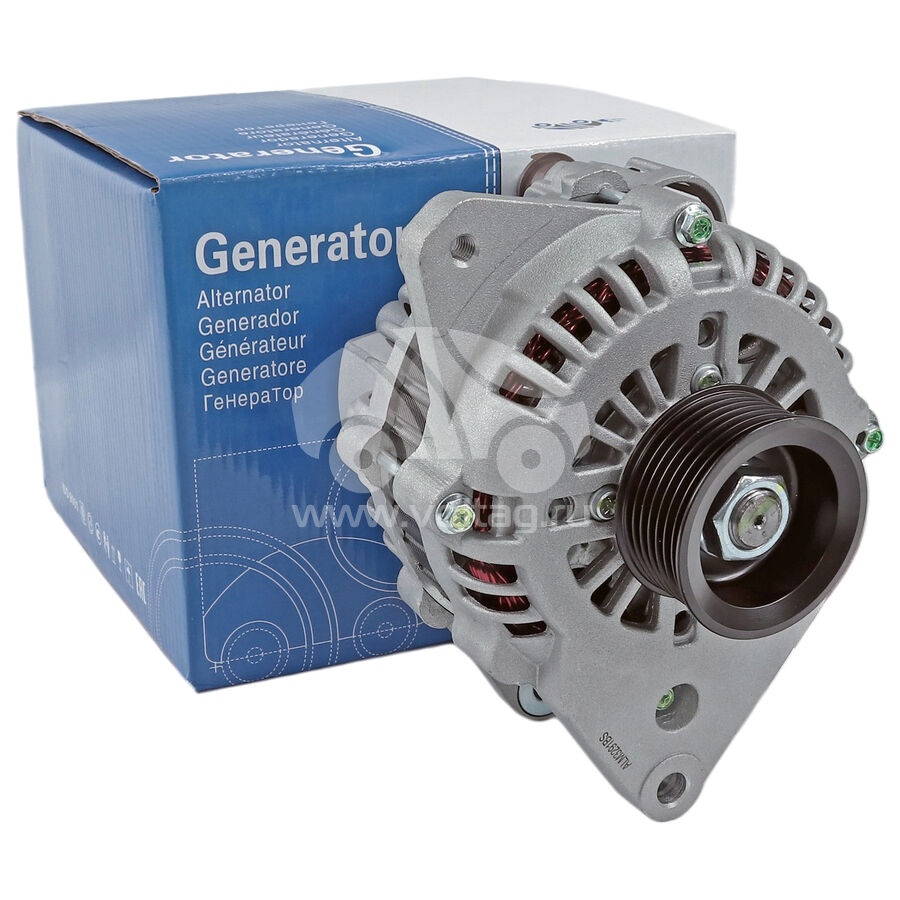

Alternator ALM3291
Alternator ALM3291
Alternator ALM3291
Alternator ALM3291

Crosses

HB J5115078
KRAUF ALM3291BS
KRAUF ALM3291BSKRAUF ALM3291BSKRAUF ALM3291BSKRAUF ALM3291BSKRAUF ALM3291BSKRAUF ALM3291BS
, ALM3291GB
KRAUF ALM3291GBKRAUF ALM3291GBKRAUF ALM3291GBKRAUF ALM3291GBKRAUF ALM3291GBKRAUF ALM3291GB
, ALM3291NW, ALM3291YX
KRAUF ALM3291YXKRAUF ALM3291YXKRAUF ALM3291YXKRAUF ALM3291YXKRAUF ALM3291YXKRAUF ALM3291YX
, ALM3291ZD
KRAUF ALM3291ZDKRAUF ALM3291ZDKRAUF ALM3291ZDKRAUF ALM3291ZDKRAUF ALM3291ZDKRAUF ALM3291ZD
Magneti Marelli 600000167030
Mitsubishi A003TG2291, A3TG2291, A3TG2291A, MN163999
Motorherz ALM3291WA
WAI 11056R
WPS 11056N
ZAUFER 301N20370Z

Application

MITSUBISHI Lancer Estate 2.0 [4G63] 09.2003-12.2007 MITSUBISHI Lancer Saloon 2.0 [4G63] 12.2003- MITSUBISHI Lancer Saloon 2.0 16V EVO IX [4G63] 01.2006- MITSUBISHI Montero 3.8 01.2004-12.2006 MITSUBISHI Outlander 2.0 [4G63] 05.2003-10.2006 MITSUBISHI Outlander 2.0 4WD [4G63] 05.2003-10.2006 MITSUBISHI Outlander 2.0 Turbo 4WD [4G63T] 04.2004-10.2006 MITSUBISHI Pajero 3.5 [6G74] 04.2000-01.2007

Replacing

Components

(all)
KRAUF ALM3291BS
Rectifier
Stator
Stator
Brush set
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator bolt
Alternator nut
Alternator bearing
Alternator bearing
KRAUF ALM3291GB
Rectifier
Stator
Stator
Brush set
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator bolt
Alternator nut
Alternator bearing
Alternator bearing
KRAUF ALM3291YX
Rectifier
Stator
Stator
Brush set
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator bolt
Alternator nut
Alternator bearing
Alternator bearing
KRAUF ALM3291ZD
Rectifier
Stator
Stator
Brush set
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator bolt
Alternator nut
Alternator bearing
Alternator bearing
Mitsubishi A3TG2291
Rectifier
Stator
Stator
Brush set
Brush set
Pulley
Regulator
Regulator
Rotor
Alternator bolt
Insulator ( Alternator )
Alternator nut
Alternator bolt
Alternator bearing
Alternator bearing
Alternator bearing
Mitsubishi A3TG2291A
Stator
Brush set
Regulator
Alternator bolt
Insulator ( Alternator )
Alternator nut
Alternator bolt
Alternator bearing
Alternator bearing
Motorherz ALM3291WA
Stator
Brush set
Regulator
Alternator bolt
Insulator ( Alternator )
Alternator nut
Alternator bolt
Alternator bearing
Alternator bearing
All components
Rectifier
Stator
Stator
Brush set
Brush set
Pulley
Regulator
Regulator
Slip ring
Rotor
Alternator bolt
Insulator ( Alternator )
Alternator nut
Alternator bolt
Alternator bearing
Alternator bearing
Alternator bearing


Alternator ALM3291 - отзывы (1)

ALM1519 не замена данному генератору
