Part type:
(show)
ALM3281


Specification

vo: Voltage
12
 volt
am: Amperage
110
 amp
a: Size A 41 mm
b: Size B 14 mm
c: Size C 59 mm
gr: Grooves/pulley 6 pcs
st: Terminal type L-S-D
vp: Vacuum Pump no

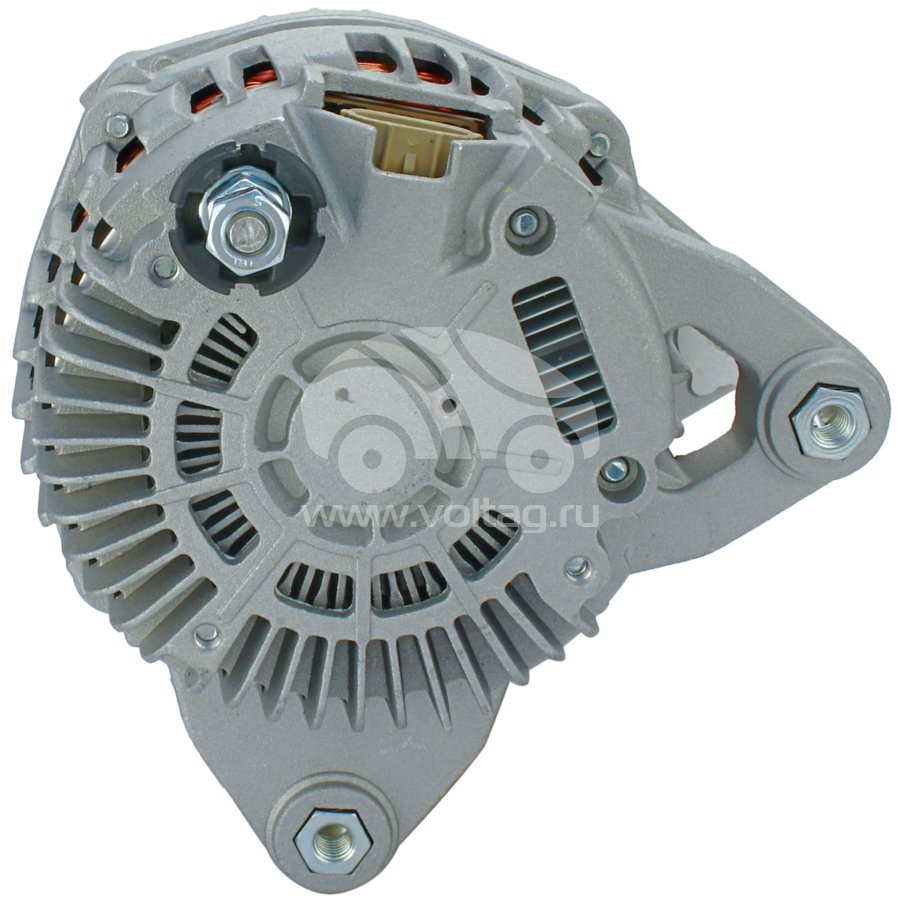

Alternator ALM3281
Alternator ALM3281
Alternator ALM3281

Crosses

Bosch 0986082440, 0986JR0816
Cargo 115340
CAS CAL35245AS
Delco Remy DRA0864
HB J5111120
HC-PARTS CA2135IR
HELLA 8EL738212151
Hitachi LR1140803, LR1140803E, LR190773
KRAUF ALH3281BS
KRAUF ALH3281BSKRAUF ALH3281BSKRAUF ALH3281BSKRAUF ALH3281BSKRAUF ALH3281BSKRAUF ALH3281BS
, ALH3281GB
KRAUF ALH3281GBKRAUF ALH3281GBKRAUF ALH3281GBKRAUF ALH3281GBKRAUF ALH3281GBKRAUF ALH3281GB
, ALH3281RN
KRAUF ALH3281RNKRAUF ALH3281RNKRAUF ALH3281RNKRAUF ALH3281RNKRAUF ALH3281RNKRAUF ALH3281RN
, ALM3281BS
KRAUF ALM3281BSKRAUF ALM3281BSKRAUF ALM3281BSKRAUF ALM3281BSKRAUF ALM3281BSKRAUF ALM3281BS
, ALM3281GB, ALM3281LP, ALM3281NW, ALM3281RN, ALM3281UX, ALM3281YX
KRAUF ALM3281YXKRAUF ALM3281YXKRAUF ALM3281YXKRAUF ALM3281YXKRAUF ALM3281YXKRAUF ALM3281YX
, ALM3281ZD
KRAUF ALM3281ZDKRAUF ALM3281ZDKRAUF ALM3281ZDKRAUF ALM3281ZDKRAUF ALM3281ZDKRAUF ALM3281ZD
, ALM9281GB
Lucas LRA03522, LRA3522
Magneti Marelli 600000164180
Mitsubishi A002TG0881, A002TJ0281, A002TJ0281ZC, A002TJ0281ZE, A2TG0881ZC, A2TJ0281, A2TJ0281ZC, A2TJ0281ZE
Motorherz ALM3281RB, ALM3281WA
Motorherz ALM3281WAMotorherz ALM3281WAMotorherz ALM3281WAMotorherz ALM3281WAMotorherz ALM3281WAMotorherz ALM3281WA
Nissan 23100ED50A, 23100EL010, 23100EM01B, 23100EM01BR, 23100EX70A, 23100JD200, 23100JD22M, 23100JN81A
Valeo 443098
WPS 11343N
ZAUFER 301N20655Z

Application

NISSAN Qashqai 2.0 [MR20DE] 01.2007-12.2010 NISSAN Qashqai 2.0 4WD [MR20DE] 01.2007-12.2010 NISSAN Tiida 1.6 [HR16DE] 01.2007-

Replacing

Components

(all)
HC-PARTS A2TJ0281ZE
Rectifier
Regulator
Hitachi LR1140803
Rectifier
Brush set
Freewheel Pulley
Regulator
Slip ring
Alternator bearing
Alternator bearing
Hitachi LR1140803E
S.R.E. Cover (Plastic)
Stator
Slip ring
Rotor
KRAUF ALH3281GB
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Insulator ( Alternator )
Insulator ( Alternator )
Bearing Plate
Insulator ( Alternator )
Alternator bolt
Alternator bearing
Alternator bearing
KRAUF ALH3281RN
Rectifier
Brush set
Freewheel Pulley
Regulator
Slip ring
Alternator bearing
Alternator bearing
KRAUF ALM3281BS
Rectifier
Stator
Brush set
Freewheel Pulley
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
KRAUF ALM3281LP
Rectifier
Stator
Brush set
Freewheel Pulley
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
KRAUF ALM3281YX
Rectifier
Stator
Brush set
Freewheel Pulley
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
KRAUF ALM3281ZD
Rectifier
Stator
Brush set
Freewheel Pulley
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
Mitsubishi A002TJ0281
Regulator
Mitsubishi A002TJ0281ZC
Regulator
Mitsubishi A002TJ0281ZE
Regulator
Mitsubishi A2TJ0281
Rectifier
Stator
Brush set
Freewheel Pulley
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Mitsubishi A2TJ0281ZC
Rectifier
Regulator
Mitsubishi A2TJ0281ZE
Regulator
Motorherz ALM3281WA
Rectifier
Stator
Brush set
Freewheel Pulley
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
All components
S.R.E. Cover (Plastic)
Rectifier
Rectifier
Rectifier
Stator
Stator
Stator
Brush set
Brush set
Brush set
Pulley
Freewheel Pulley
Freewheel Pulley
Regulator
Regulator
Regulator
Slip ring
Slip ring
Slip ring
Rotor
Rotor
Rotor
Alternator nut
Alternator nut
Alternator nut
Insulator ( Alternator )
Insulator ( Alternator )
Bearing Plate
Insulator ( Alternator )
Alternator bolt
Insulator ( Alternator )
Alternator bearing
Alternator bearing
Alternator bearing
Alternator bearing
