Part type:
(show)
ALI4817


Specification

vo: Voltage
12
 volt
am: Amperage
120
 amp
a: Size A 74 mm
b: Size B 50 mm
gr: Grooves/pulley 8 pcs

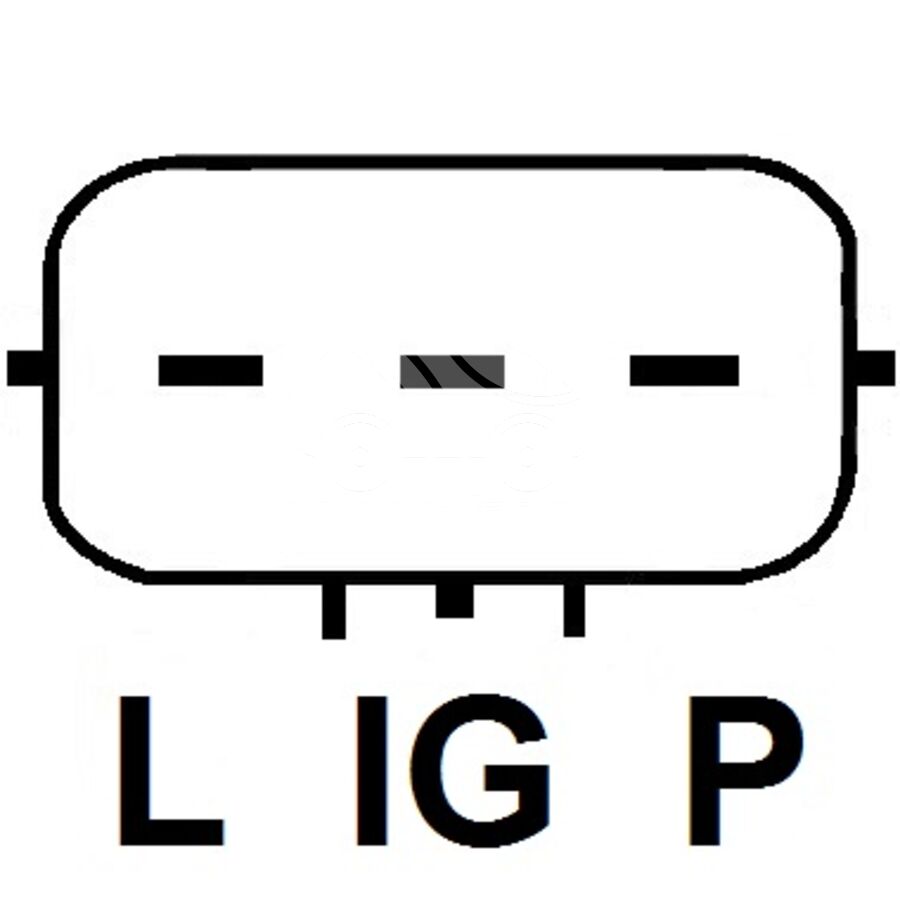

st: Terminal type L-IG-P
vp: Vacuum Pump no

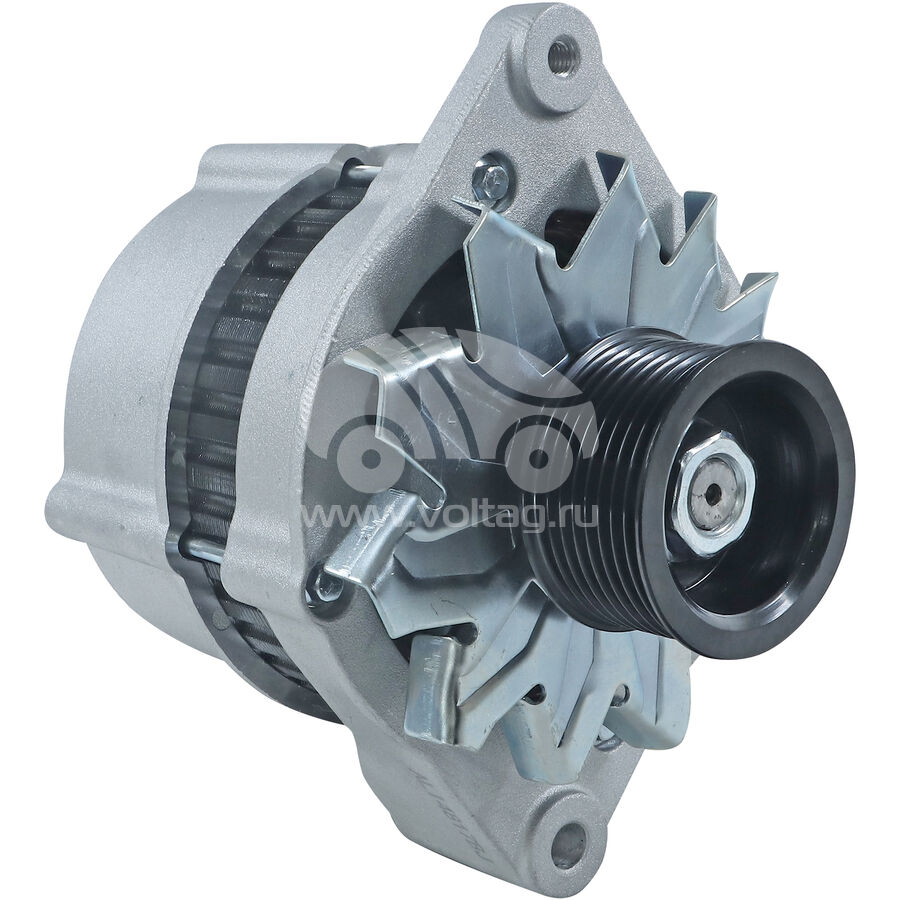

Alternator ALI4817
Alternator ALI4817
Alternator ALI4817
Alternator ALI4817
Alternator ALI4817
Alternator ALI4817

Crosses

CASE 84254290
Case New Holland 162000090143, 84416590
Iskra 11204061, 11204320, 11204363, 11204669, AAK3829, AAK4805, AAK4817, AAK4930
Iskra AAK4930Iskra AAK4930Iskra AAK4930Iskra AAK4930Iskra AAK4930
, IA1453
KRAUF ALI4817LK
KRAUF ALI4817LKKRAUF ALI4817LKKRAUF ALI4817LKKRAUF ALI4817LKKRAUF ALI4817LK
, ALI4817UX
MAHLE MG137
MAHLE MG137MAHLE MG137MAHLE MG137MAHLE MG137MAHLE MG137
Motorherz ALI4817RB, ALI4817WA
Motorherz ALI4817WAMotorherz ALI4817WAMotorherz ALI4817WAMotorherz ALI4817WAMotorherz ALI4817WA
ZAUFER 301N20662Z

Application

CASE 580ST CASE 590ST/SN CASE 695ST CASE SV250 CASE SV300

Replacing

Components

(all)
CASE 84254290
Rectifier
Case New Holland 162000090143
Rectifier
Iskra 11204061
Rectifier
Iskra 11204320
Rectifier
Iskra 11204669
Rectifier
Iskra AAK3829
Rectifier
Pulley
Iskra AAK4805
Rectifier
Pulley
Iskra AAK4817
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator bolt
Alternator bolt
Alternator nut
Alternator nut
Fan
Bearing Plate
Bearing Plate
Alternator bolt
Alternator bearing
Alternator bearing
Starter bolt
Iskra AAK4930
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator bolt
Alternator bolt
Alternator nut
Alternator nut
Fan
Bearing Plate
Alternator bolt
Alternator bearing
Alternator bearing
Starter bolt
KRAUF ALI4817LK
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator bolt
Alternator bolt
Alternator nut
Alternator nut
Fan
Bearing Plate
Bearing Plate
Alternator bolt
Alternator bearing
Alternator bearing
Starter bolt
MAHLE MG137
Rectifier
Stator
Brush set
Regulator
Slip ring
Rotor
Alternator bolt
Alternator bolt
Alternator nut
Alternator nut
Fan
Bearing Plate
Alternator bolt
Alternator bearing
Alternator bearing
Starter bolt
All components
Rectifier
Stator
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator bolt
Alternator bolt
Alternator nut
Alternator nut
Fan
Bearing Plate
Bearing Plate
Alternator bolt
Alternator bearing
Alternator bearing
Alternator bearing
Starter bolt
