Part type:
(show)
ALP3601


Specification

vo: Voltage
24
 volt
am: Amperage
110
 amp
a: Size A 41.5 mm
b: Size B 16.5 mm
c: Size C 101.5 mm
gr: Grooves/pulley 2 pcs

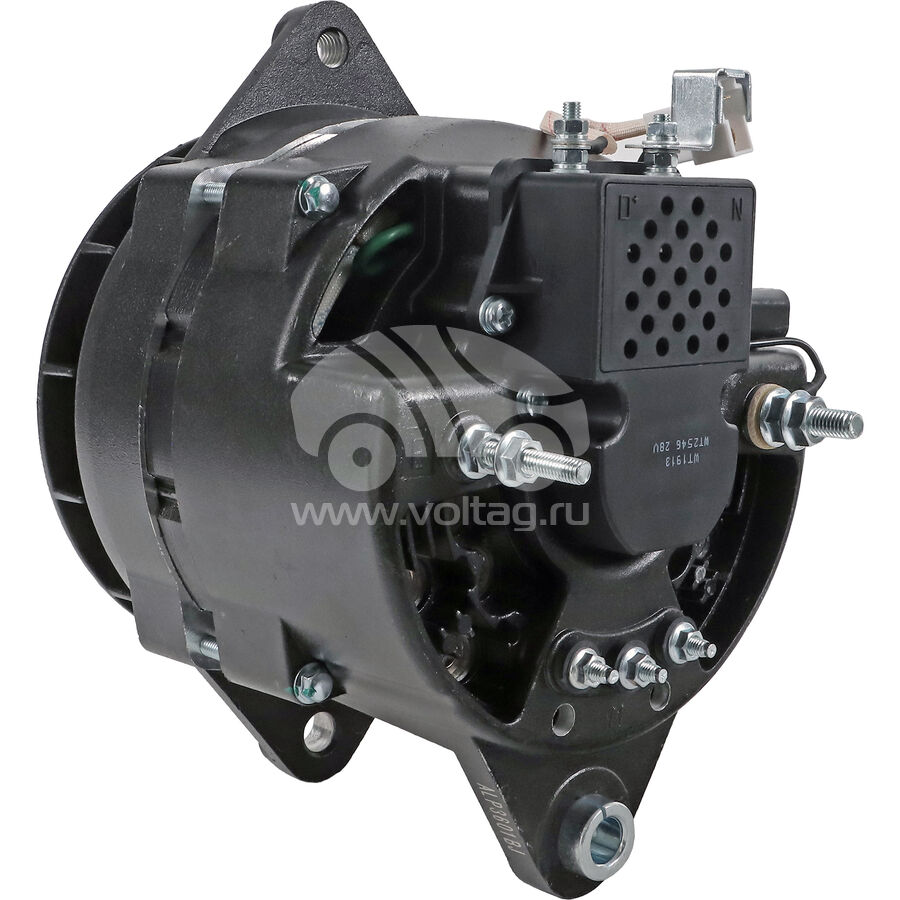

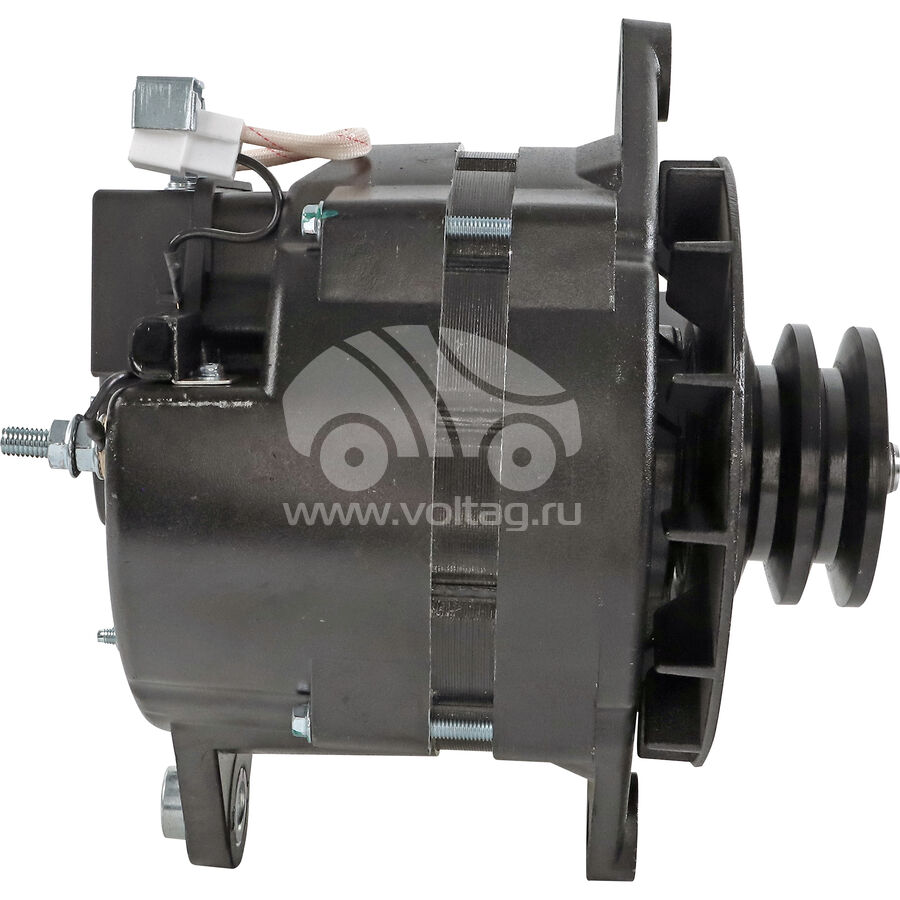

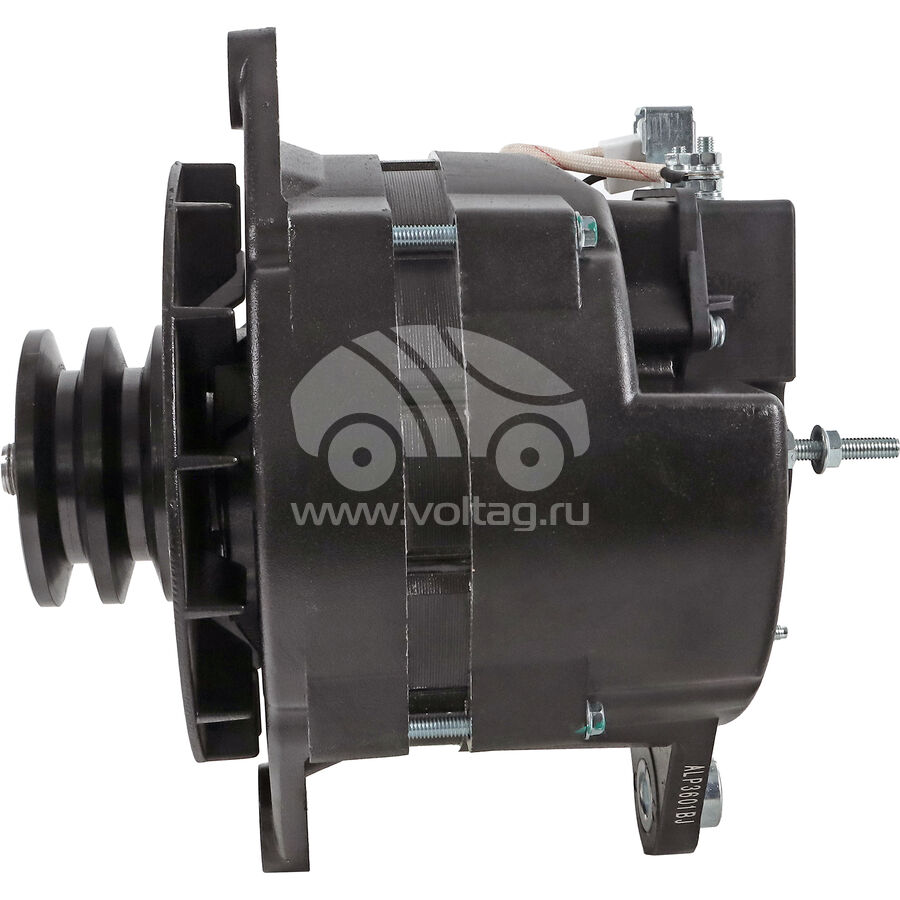

Alternator ALP3601
Alternator ALP3601
Alternator ALP3601
Alternator ALP3601
Alternator ALP3601
Alternator ALP3601

Crosses

Cargo 114374
KRAUF ALP3601RP
KRAUF ALP3601RPKRAUF ALP3601RPKRAUF ALP3601RPKRAUF ALP3601RPKRAUF ALP3601RP
, ALP4374AN, ALP4374RP
KRAUF ALP4374RPKRAUF ALP4374RPKRAUF ALP4374RPKRAUF ALP4374RPKRAUF ALP4374RP
Motorherz ALP3601WA
Prestolite AVE2110D3, JFZ2101A2, JFZ2110A2, JFZ2110D3
Unipoint ALT0172, ALT0173
WAI 1-3515-25W
ZAUFER 301N22041Z

Application

DEUTZ-DALIAN CA6110, FOTON-AUV BUS, HIGER KING LONG FD46 NISSAN, YUNNEI POWER 4100QBZL Yulin Diesel YC6L280-30 FOTON-AUV BUS, SHANGHAI DIESEL 114 SERIES

Replacing

Components

(all)
KRAUF ALP3601RP
S.R.E. Bracket
Rectifier
Stator
Brush Holder
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Alternator bolt
Fan
Bearing Plate
Alternator bolt
Starter/Alternator Bearing
Alternator bearing
KRAUF ALP4374RP
Rectifier
Stator
Brush Holder
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Alternator bolt
Alternator bolt
Starter/Alternator Bearing
Alternator bearing
Motorherz ALP3601WA
Rectifier
Regulator
Prestolite JFZ2101A2
S.R.E. Bracket
Rectifier
Stator
Brush Holder
Brush set
Pulley
Regulator
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Alternator bolt
Fan
Bearing Plate
Alternator bolt
Starter/Alternator Bearing
Alternator bearing
Unipoint ALT0172
Rectifier
Unipoint ALT0173
Rectifier
All components
S.R.E. Bracket
Rectifier
Stator
Brush Holder
Brush set
Pulley
Regulator
Slip ring
Slip ring
Rotor
Alternator nut
Alternator nut
Alternator nut
Alternator bolt
Fan
Bearing Plate
Alternator bolt
Starter/Alternator Bearing
Alternator bearing
