Part type:
(show)
ALN5070


Specification

vo: Voltage
12
 volt
am: Amperage
155
 amp
a: Size A 72.9 mm
b: Size B 43.3 mm
c: Size C 76.5 mm
gr: Grooves/pulley 6 pcs

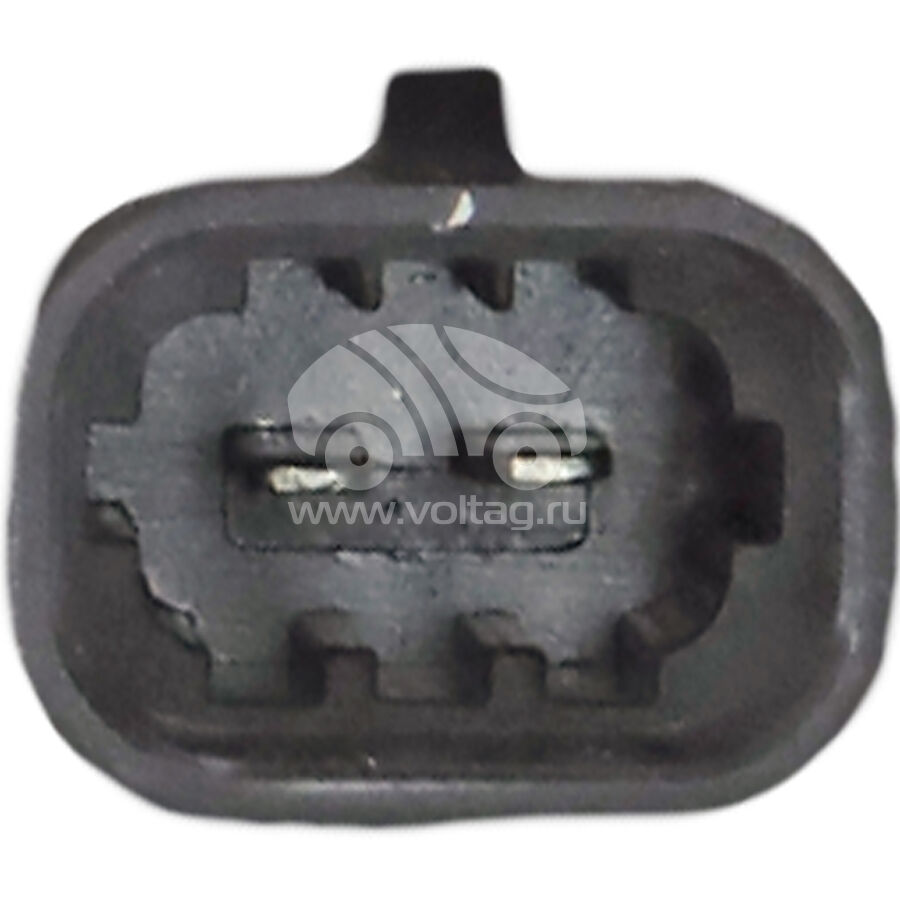

st: Terminal type L(RVC)-DFM(FR)
vp: Vacuum Pump no

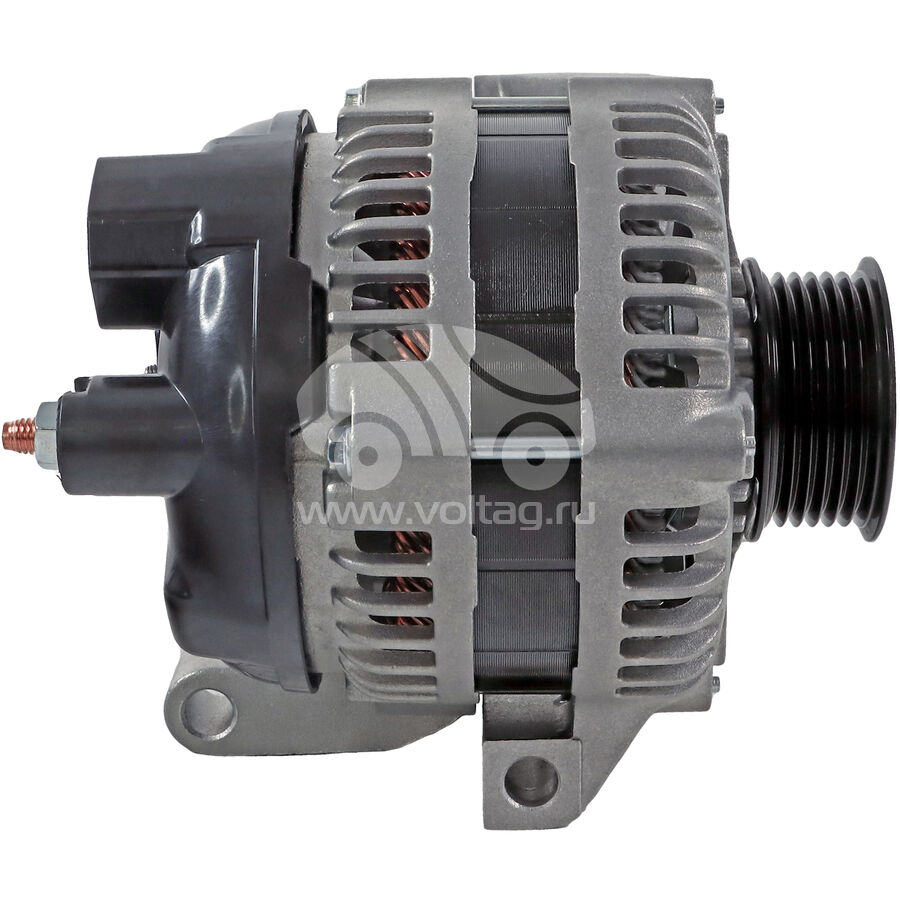

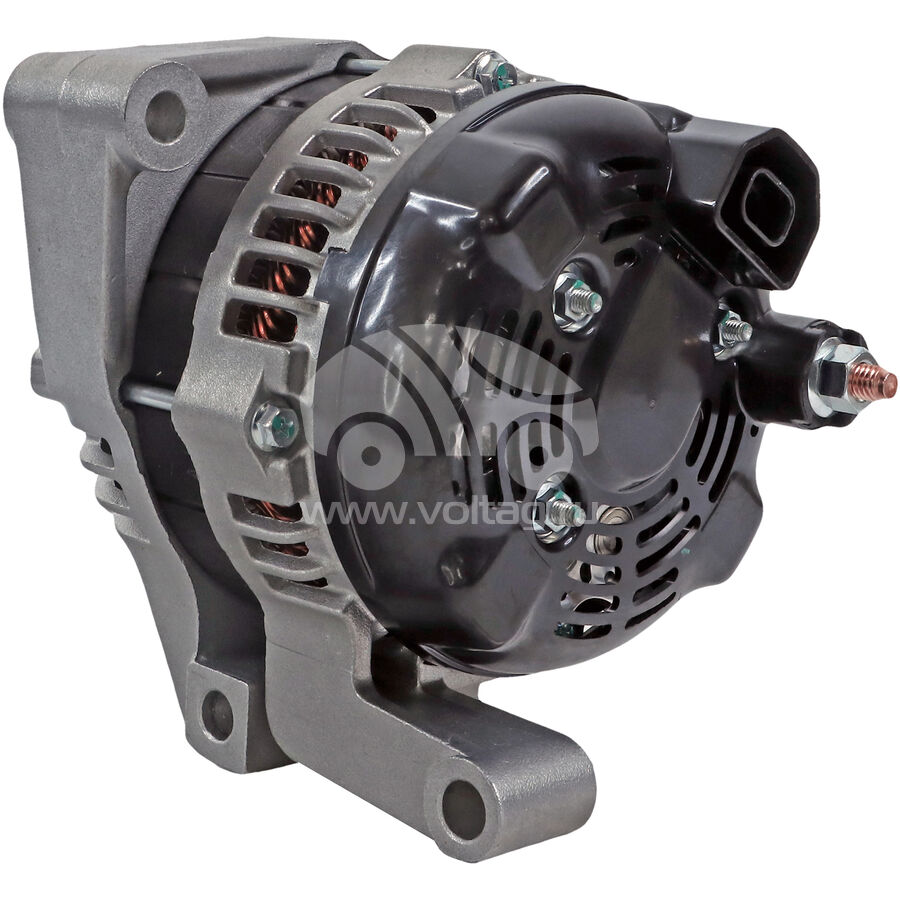

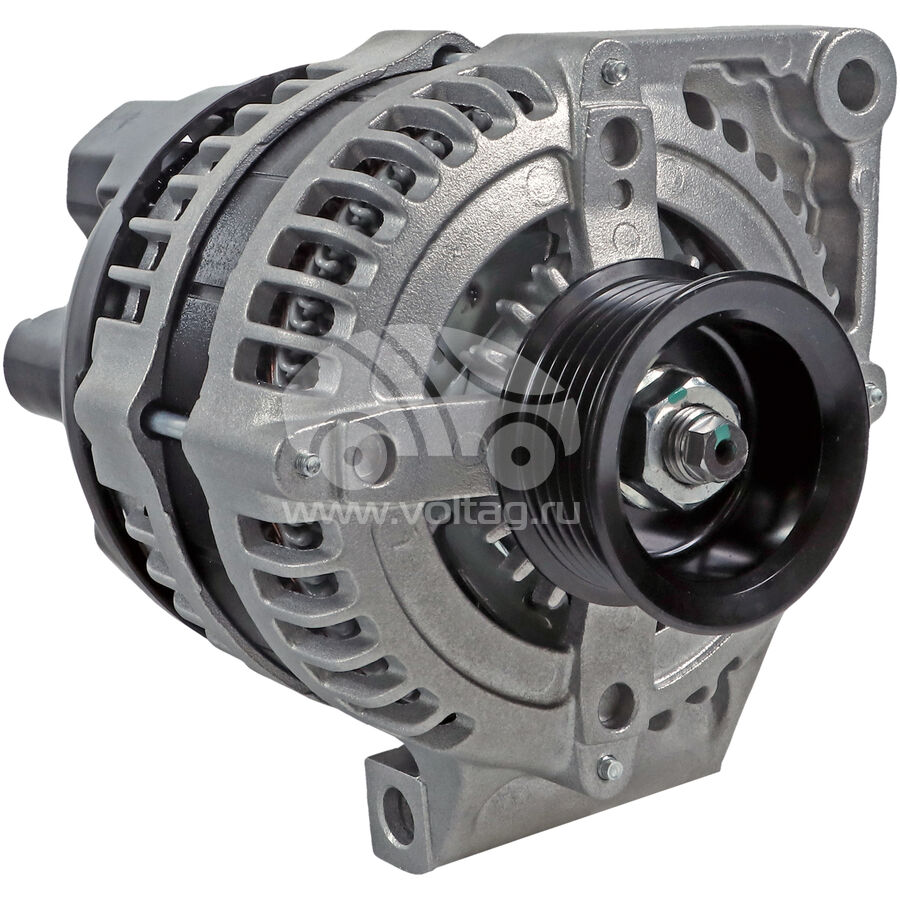

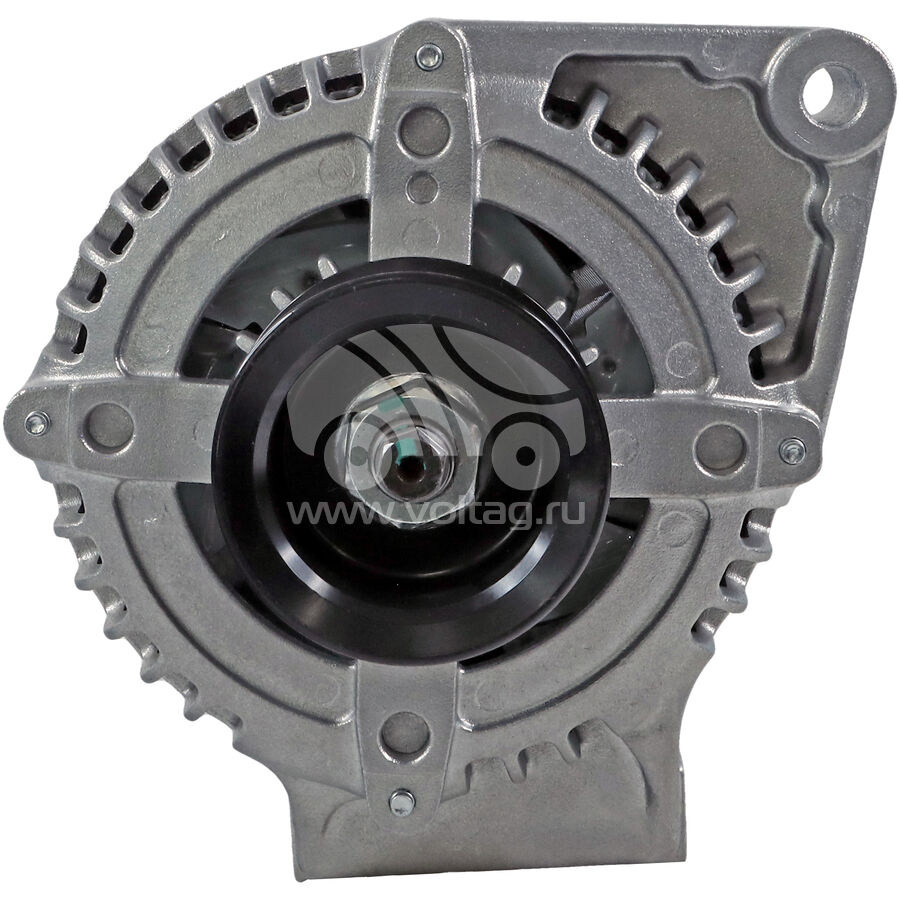

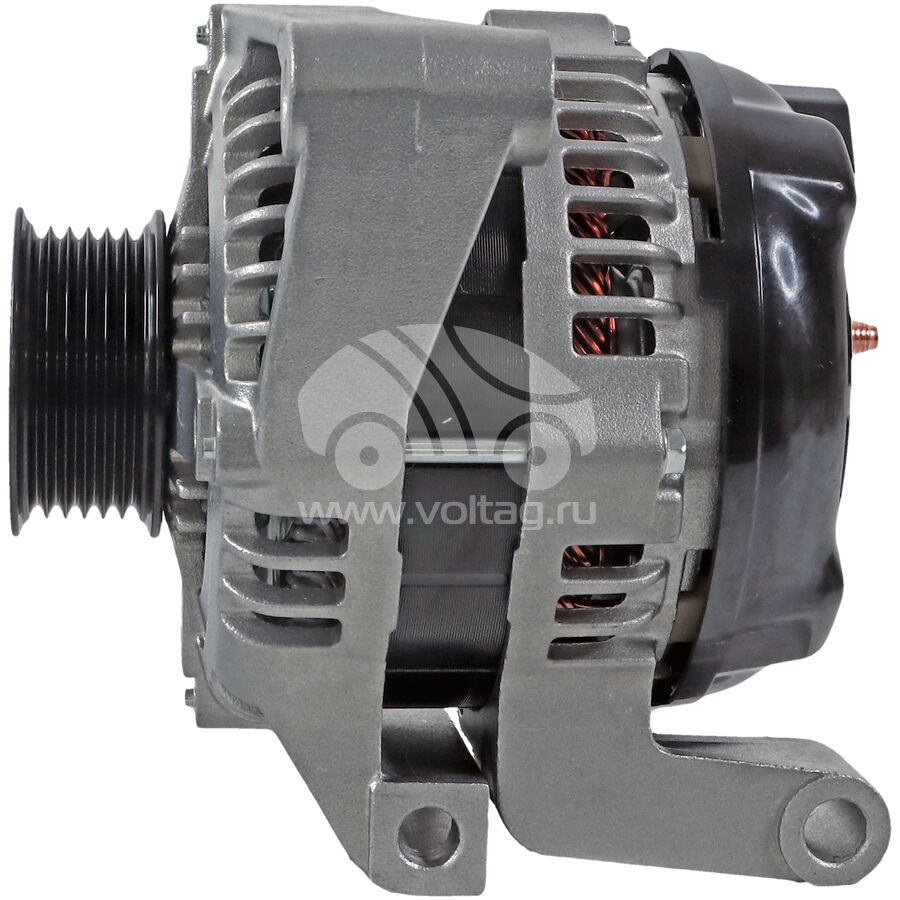

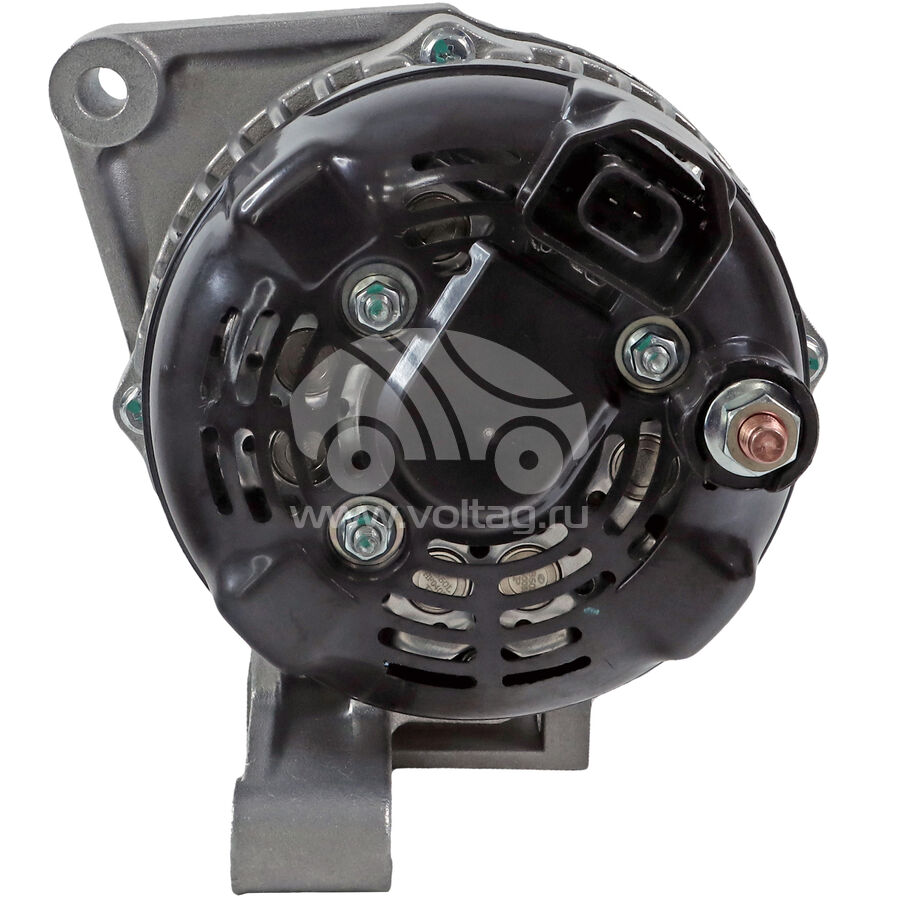

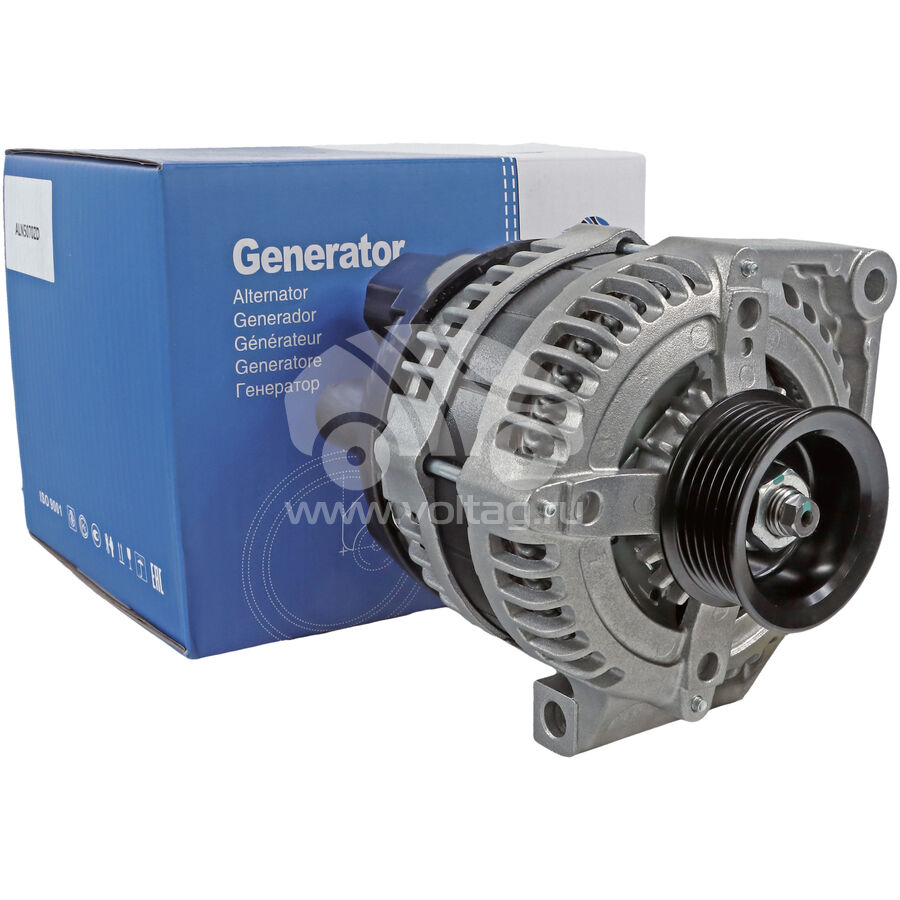

Alternator ALN5070
Alternator ALN5070
Alternator ALN5070
Alternator ALN5070
Alternator ALN5070
Alternator ALN5070
Alternator ALN5070

Crosses

Denso 1042102160, 1042105070, 1042105420
GM 15826299, 25862643, 96673482
KRAUF ALN5070AN, ALN5070BA, ALN5070LP, ALN5070NW
KRAUF ALN5070NWKRAUF ALN5070NWKRAUF ALN5070NWKRAUF ALN5070NWKRAUF ALN5070NWKRAUF ALN5070NW
, ALN5070UX, ALN5070ZD
WPS 11156N, 11156R

Application

CHEVROLET EQUINOX V6 3.4L 2007-2008 PONTIAC TORRENT V6 3.4L 2007-2008

Components

(all)
Denso 1042102160
Rectifier
Regulator
Denso 1042105070
Rectifier
Stator
Brush set
Brush Holder
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
KRAUF ALN5070NW
Rectifier
Stator
Brush set
Brush Holder
Regulator
Rotor
Alternator bearing
Alternator bearing
All components
Rectifier
Stator
Brush set
Brush Holder
Regulator
Rotor
Insulator ( Alternator )
Alternator bearing
Alternator bearing
