Part type:
(show)
SDB1832


Specification

te: Number of teeth
9
 pcs
od: Drive diameter ( outer )
25.3
 mm
ro: Rotation CR
le: Total lenght of drive 48.5 mm
sr: Number of splines (rear) 10 pcs
id: Drive diameter ( inner ) 11 mm
hi: O.d. housing 45 mm

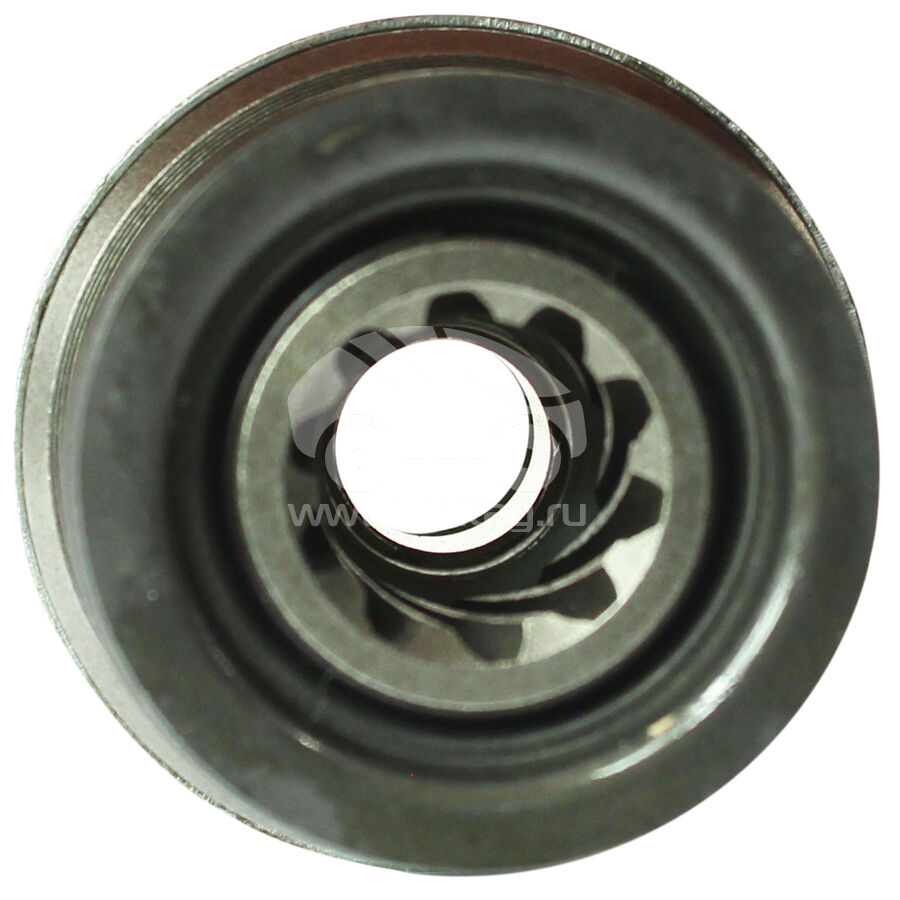

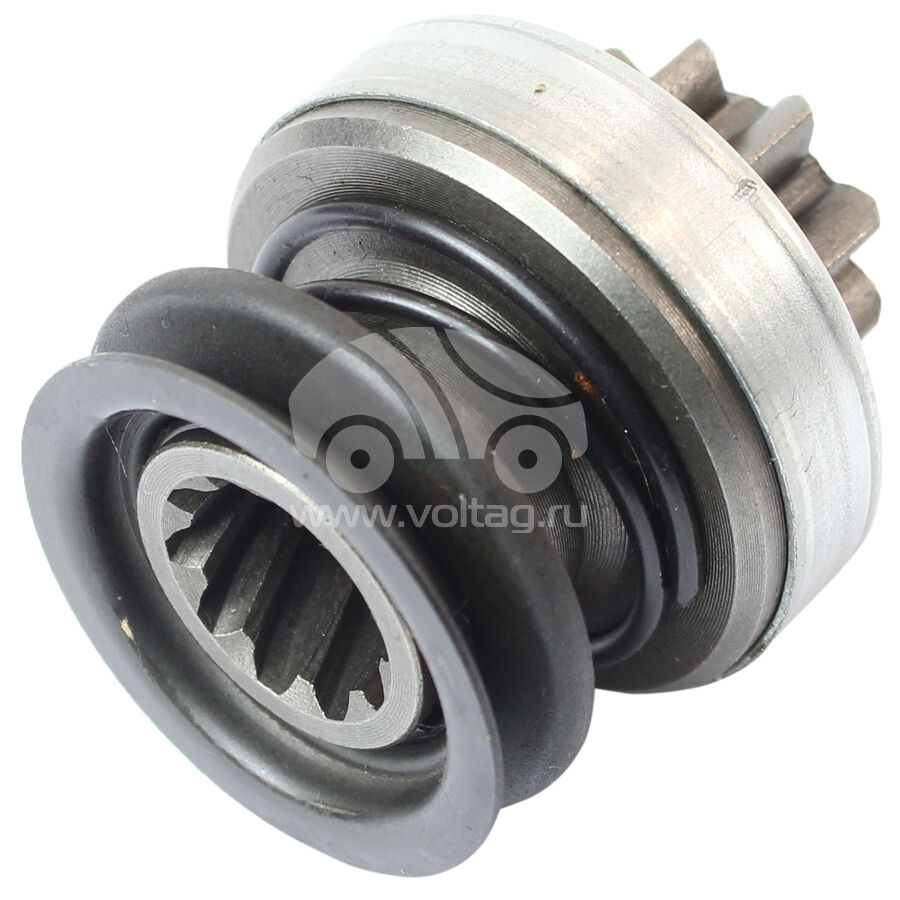

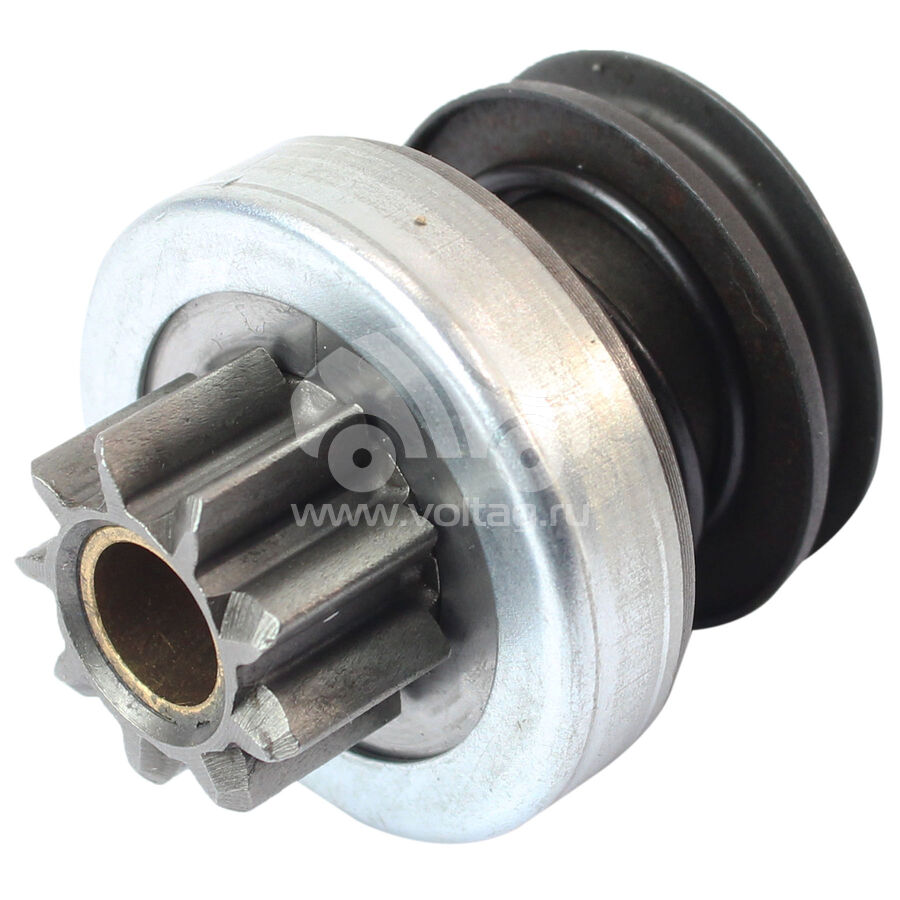

Drive SDB1832
Drive SDB1832

Crosses

Bosch 1006209796
Cargo 236832, 333198
Ghibaudi 6028
GM 93180118
Ika 451721
KRAUF SDB1832EX
KRAUF SDB1832EXKRAUF SDB1832EXKRAUF SDB1832EXKRAUF SDB1832EXKRAUF SDB1832EX
, SDB1832PN
KRAUF SDB1832PNKRAUF SDB1832PNKRAUF SDB1832PNKRAUF SDB1832PNKRAUF SDB1832PN
WAI 3-5315-W
ZAUFER 315N10595Z
Zen 1641

Application

FIAT Doblo I 1.3 JTD 119 223 2005-2010 1248ccm 223A9.000// LANCIA Ypsilon I 1.3 D Multijet 843 2006- 1248ccm 199A2.000 192A3.000// OPEL Agila A 1.3 CDTI H00 2003-2008 1248ccm Z13DT/ OPEL Astra H 1.3 CDTI 2005-2010 1248ccm Z13DTH OPEL Combo C 1.3 CDTI 16V 2004-2006 1248ccm Z13DT Z13DTJ OPEL Corsa C 1.3 CDTI F08 F68 2003-2006 1248ccm Z13DT SUZUKI Ignis II 1.3 DDiS 2003- 1248ccm Z13DT SUZUKI Splash 1.3 DDiS 2008- 1248ccm Z13DTJ SUZUKI Swift III 1.3 DDiS MZ EZ 2005- 1248ccm Z13DT SUZUKI Wagon R+ 1.3 DDiS MM 2003- 1248ccm Z13DT

Components

(all)
Bosch 1006209796
Roller
All components
Roller
